Geometry Transfer through Ansys DesignModeler (DM)

It is possible to edit geometry in Ansys DesignModeler (DM) before consuming it in IcepakFEA. This is useful when geometry requires preprocessing for Ansys simulation.

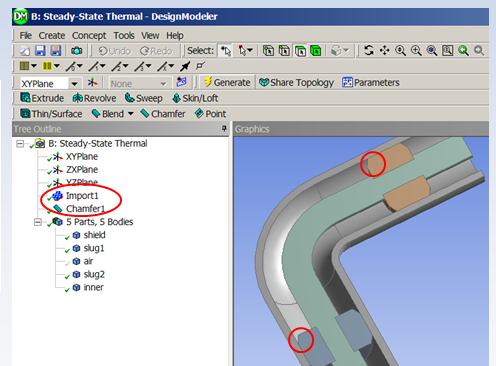

Consider an HFSS model linked to DM through the Workbench. In the following example, a chamfer operation on geometries is being imported.
