Welcome to SIwave Help

	View Ansys Electronics videos on YouTube.
	View SIwave PDFs.

Click the links below for more information on SIwave topics.

For help using this website, watch the video Using the SIwave Help.

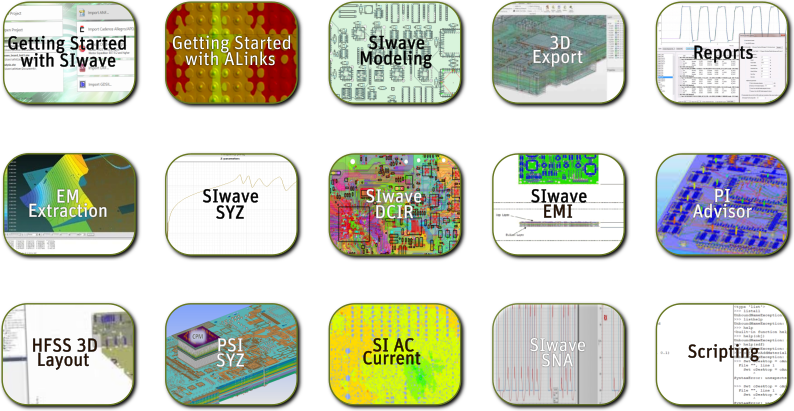

SIwave Help - Image Map

Chip-Package-System (CPS) methodology in SIwave combines the Integrated Circuit (IC) model or chip, the packages that contain the chips, and the printed circuit board (PCB) into a single system for simulation. The CPS process flow includes both design and analysis activities.

Design activities include:

PCB Design – Import and set up the PCB.
Package Design – Import and merge packages with the PCB.
IC Design (CPM) – Import and merge the IC models with the corresponding packages on the PCB.
System Design – Complete the integrated PCB System by adding vias, solder balls, and decoupling components.

Analysis activities include:

SIwave Solvers – Simulate with the field and circuit solvers built into SIwave.
Cosimulate – Cosimulate with circuit and thermal tools.
Export 3D Model – Export a 3D model to MCAD solvers.
Export Sentinel SSO Netlist – Export a SPICE netlist with CPP header for Sentinel-SSO flow.

Click any activity in the CPS Process Flow diagram below for more information.

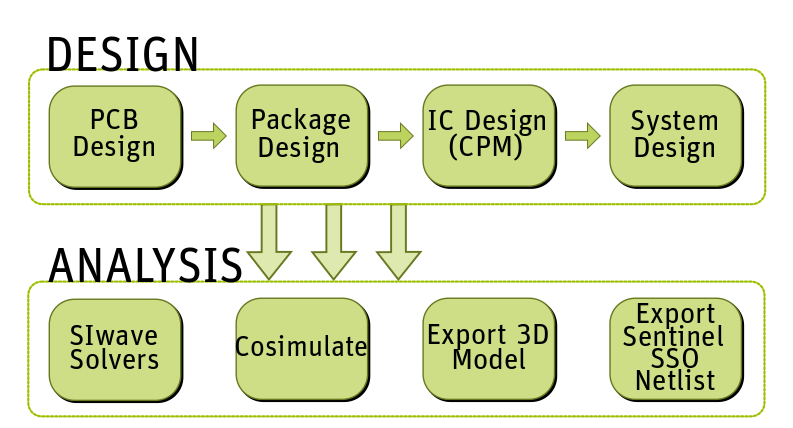

CPS Process Flow - Click an Activity for More Information
