Example Projects

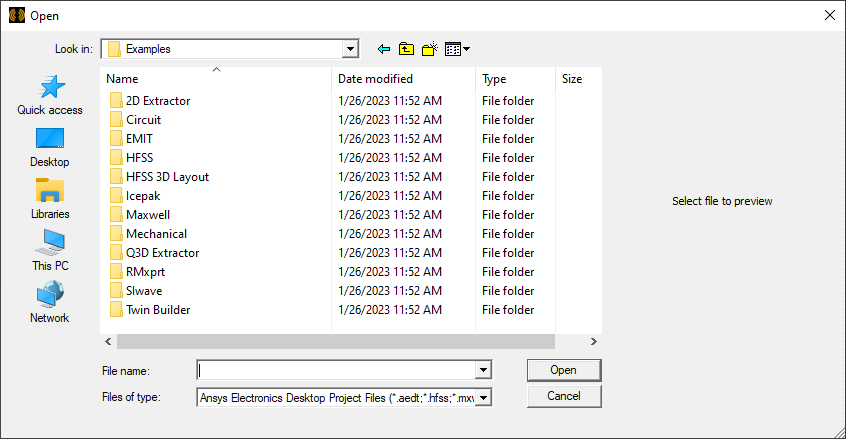

Your Ansys Electronics Desktop installation includes an example directory containing projects folders for several kinds of designs.
Example projects are organized by the design type.
Several of these projects are associated with detailed getting started guides.
Q3D Extractor Example Project

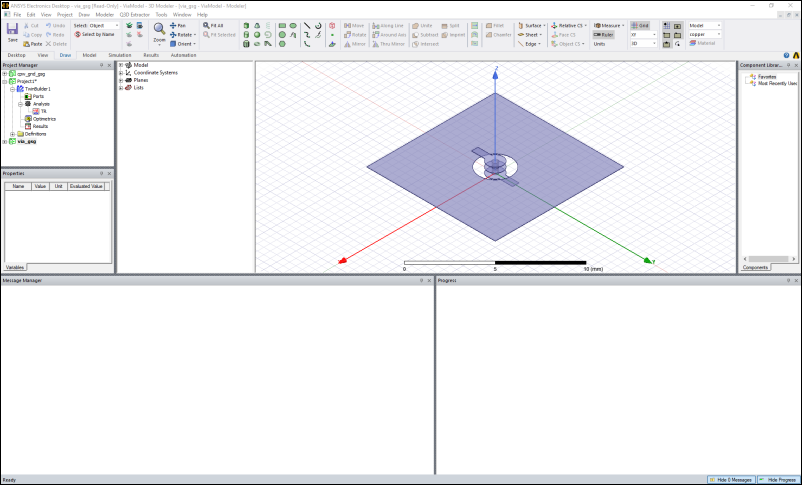

The Examples\Q3D Extractor directory contains a ViaModel project (via_gsg.aedt), described in its associated Getting Started Guide.
To open the example, click File > Open Examples, or click Open Examples on the Desktop tab.
The Getting Started Guide is located in the "...\ANSYS Inc\v252\AnsysEM\Help\Q3DExtractor\GSG" directory.
2D Extractor Example Project

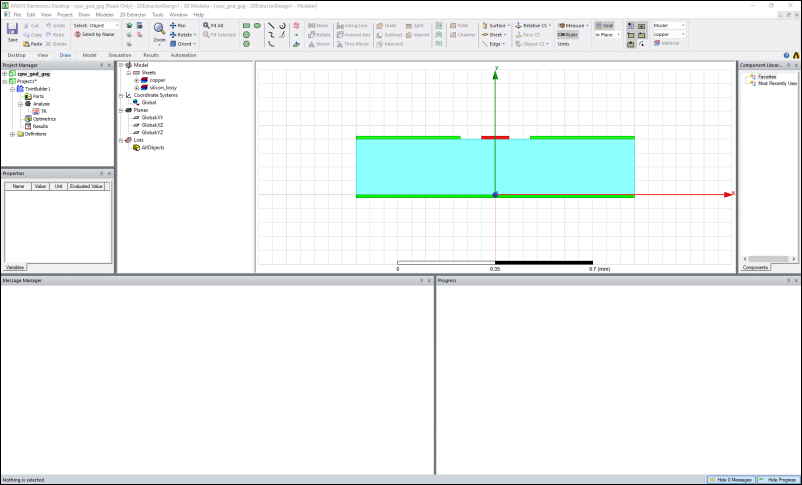

The Examples\2D Extractor directory contains the cpw_gnd_gsg.aedt project, described in its associated Getting Started Guide.
To open the example, click File > Open Examples, or click Open Examples on the Desktop tab.
The Getting Started Guide is located in the "...\ANSYS Inc\v252\AnsysEM\Help\Q3DExtractor\GSG" directory.
