Overview of Electronics Desktop Scripting Objects

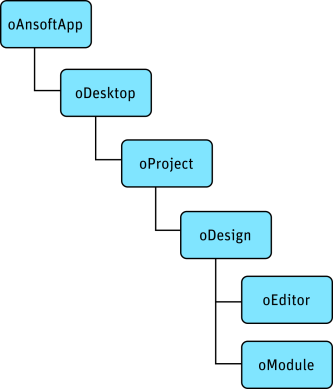

When you record a script using Ansys Electronics Desktop, the beginning of the script must contain some standard commands, as illustrated in the following chart. The commands in the chart define the objects used by Electronics Desktop in the script and assign values to these objects. The objects are used in the hierarchical order shown.

The commands are described below, followed by examples.

oAnsoftApp

The oAnsoftApp object provides a handle for Iron Python to access the Ansoft.ElectronicsDesktop product.

In Iron Python, for example:

oAnsoftApp = CreateObject('Ansoft.ElectronicsDesktop')

oDesktop

The oDesktop object is used to perform desktop-level operations, including project management.

In Iron Python, for example:

oDesktop = oAnsoftApp.GetAppDesktop()

Consult the following for details about script commands recognized by oDesktop:

• Desktop Object Script Commands.

oProject

The oProject object corresponds to one project open in Electronics Desktop. It is used to manipulate the project and its data. Its data includes variables, material definitions, and one or more designs.

In Iron Python, for example:

oProject = oDesktop.GetActiveProject()

Consult the following for details about script commands recognized by oProject:

• Project Object Script Commands

oDesign

The oDesign object corresponds to a design in the project. This object is used to manipulate the design and its data, including variables, modules, and editors.

In Iron Python, for example:

oDesign = oProject.GetActiveDesign()

Consult the following for details about script commands recognized by oDesign:

• Design Object Script Commands
• Output Variable Script Commands
• Reporter Editor Script Commands

oEditor

The oEditor object corresponds to an editor, such as the 3D Modeler, Layout, or Schematic editor. This object is used to add and modify data in the editor.

In Iron Python, for example:

oEditor = oDesign.SetActiveEditor('3D Modeler')

Consult the following for details about script commands recognized by oEditor:

• 3D Modeler Editor Script Commands
• Layout Editor Script Commands
• Schematic Editor Script Commands

oModule

The oModule object corresponds to a module in the design. Modules are used to handle a set of related functionalities.

In IronPython, for example:

oModule = oDesign.GetModule('BoundarySetup')

Consult the following for details about script commands recognized by oModule:

• Analysis Module Script Commands
• Boundary and Excitation Module Script Commands
• Field Overlays Module Script Commands
• Mesh Operations Module Script Commands
• Optimetrics Module Script Commands
• Radiation Module Script Commands
• Reduce Matrix Module Script Commands
• Solutions Module Script Commands

Example Script Opening

Combining the above objects, a script in Iron Python could begin like the following:

oAnsoftApp = CreateObject("Ansoft.ElectronicsDesktop")

oDesktop = oAnsoftApp.GetAppDesktop()

oProject = oDesktop.SetActiveProject("Project1")

oDesign = oProject.SetActiveDesign("Design1")

oEditor = oDesign.SetActiveEditor("3D Modeler")

oModule = oDesign.GetModule("BoundarySetup")

GetActiveProject and GetActiveDesign for Wider Use

The sample script above only works for "Design1" within "Project1". To create a script that is usable for any open project, you can use one or both of GetActiveProject and GetActiveDesign.

In IronPython:

oProject = oDesktop.GetActiveProject()

oDesign = oProject.GetActiveDesign()
