UDM Compared to User-Defined Primitives

User-Defined Models (UDM) resemble User-Defined Primitives (UDP):

• Ansys EM products can be extended by users through new UDMs.
• UDM plugins are discovered by searching standard directory paths .
• Plugins for static UDM can build model using 'callback interfaces' (like create-box, create-cylinder, subtract etc) similar to UDP.
• UDMs run inside Ansys EM applications.
• UDMs provide geometry, topology, persistence and parameters

In contrast to UDP:

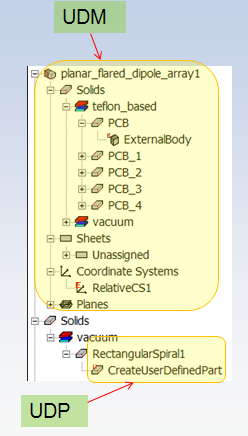

• UDM provides multiple Parts/CS/etc.

UDP provides primitive operation only for a single Part.

• UDM provides part attributes and material assignment.
• UDP does not define part attributes or material.

UDM Properties have four tabs - Definitions, Parameters, Options and Info.

• Definition tab has:

• UDM name
• Coordinate system used to position UDM
• May have external reference to file

• Info tab has:

• UDM dll or .py name, dll or .py location, version etc

• Option tab:

• may have options if any
