Spectrum Utilization
The Spectrum Utilization toolkit performs a pre-analysis of all radios and emitters in a project. It quickly computes and plots the transmit and receive bands of all systems in a project to help identify the most likely interference sources. The plots can also be used to quickly determine whether there is spectrum available for adding new systems to the environment.

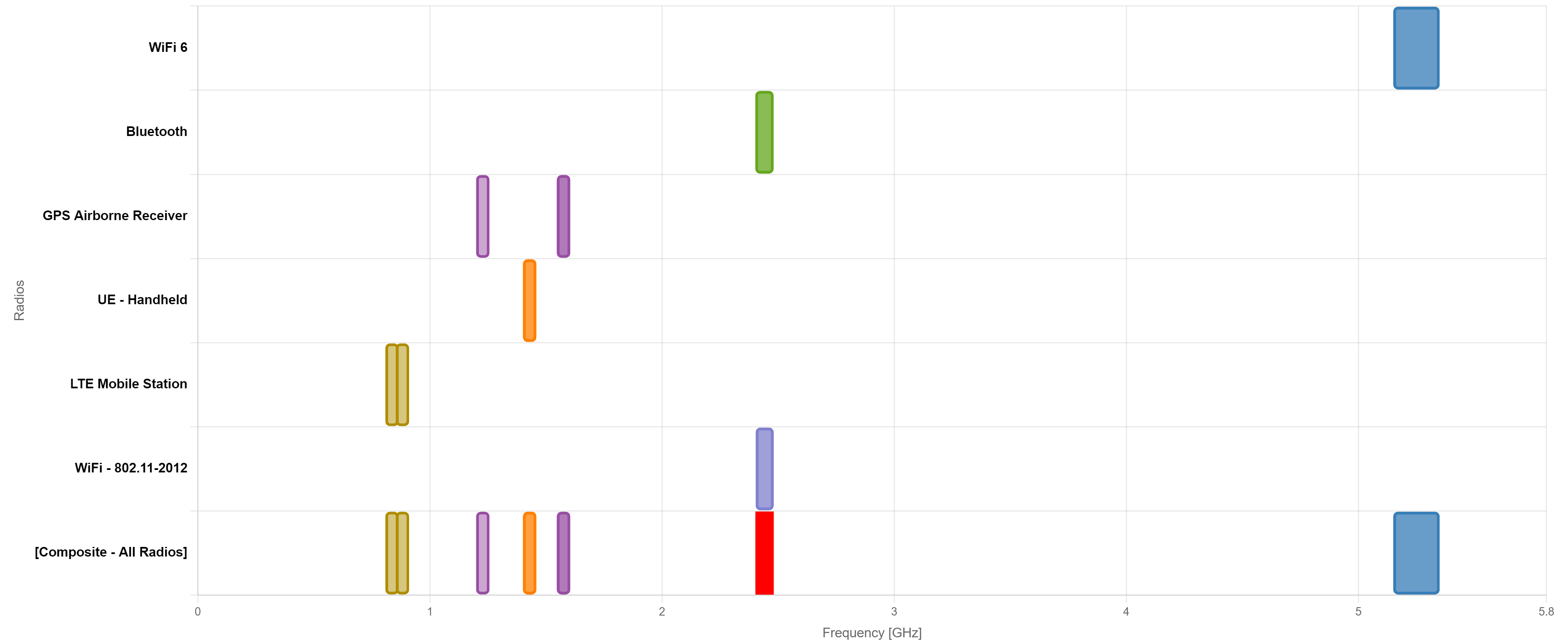

The example below shows the potential for interference between the Bluetooth and WiFi-802.11-2012 radios.
Note:
The Spectrum Utilization toolkit only analyzes the operational bands of each radio or emitter. It does not include any harmonics or spurs or the effects of broadband noise.
