Pairing an AMI Transmitter and an AMI Receiver in the Schematic

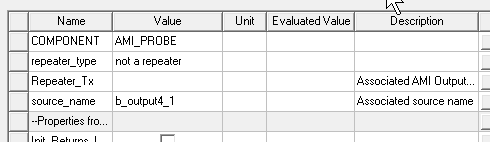

An AMI circuit may contain multiple AMI Transmitters and AMI Receivers. Each AMI Transmitter must be paired with a corresponding AMI Receiver, and vice versa. The probe_name parameter in the AMI Transmitter has a drop-down menu that lists all the AMI Receivers in the design. The AMI Receiver source_name parameter has a drop-down that lists all the AMI Transmitters in the design.

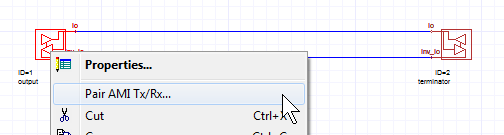

Instead of using the drop-down menus, pair a selected Transmitter and Receiver directly in the schematic. Use Ctrl+click to select the AMI Transmitter and AMI Receiver that you want to pair up. With the cursor on either component, right-click and select Pair AMI Tx/Rx ... on the menu.

The probe_name parameter in the selected AMI Transmitter is set to the name of the selected AMI Receiver.

The source_name parameter in the selected AMI Receiver is set to the name of the selected AMI Transmitter.
