Loading a Netlist from a File

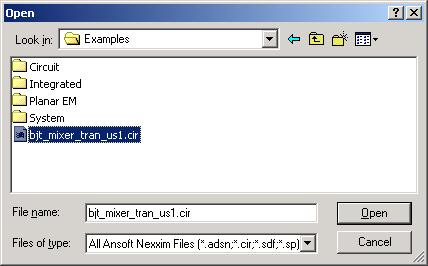

To load a design from an existing Circuit netlist file, Click the File > Open command. Select the “All Ansoft Nexxim Files” extension in the Files of type window of the explorer window.

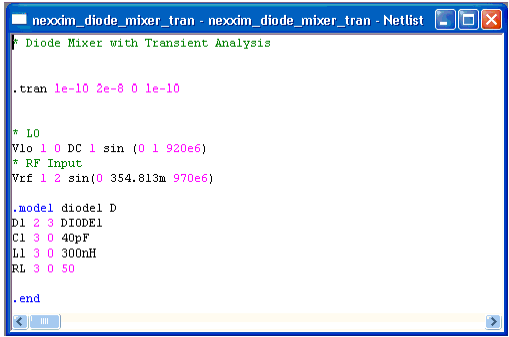

The file opens in the Netlist Editor window.

The Netlist Editor display is colored to provide easy identification of variables, values, comments, bookmarks, and other elements of the netlist.
