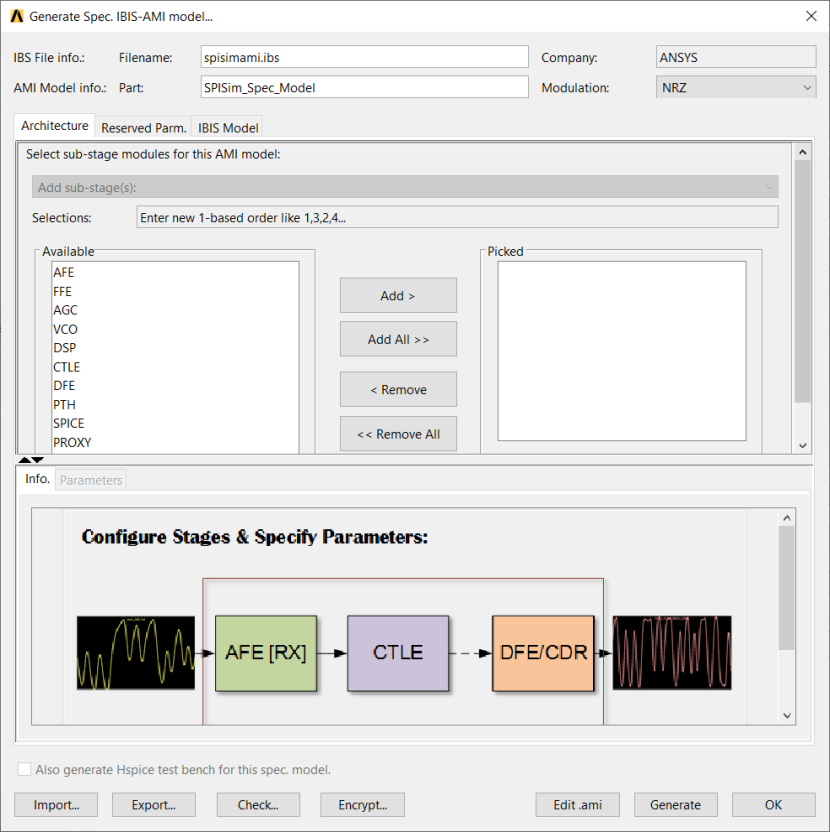

Generate Spec. IBIS-AMI model: Architecture Tab
From the Architecture tab, choose model generation sub-stages by adding, reordering, and/or removing sub-stages, and customizing the parameters of each sub-stage, as before.
|
Model Name |
Description |
Notes |
|---|---|---|
|
AFE |
Analog Front End |
PX: Pulse Shaping. Shape digital input to output with slew rates. RX: Apply input impedance + CComp Load to RX input. TX: [PX]+ Output Impedance + CComp load after TX output. |
|
FFE |
Feed Forward Equalizer |
Finite Impulse Response based filter. Calculate tap coefficients (unit-less) based on spec. Normalized: Sum(abs(Ci)=1) , Ci includes main cursor. An Rx model that takes a forwarded clock signal of type "Times" will output (return) the same clock times it received. These settings can be enabled in the Reserved Parm tab. Models that take a forwarded clock signal of type "Wave" will not output clock times. |
|
AGC |
Automatic Gain Controller |
Adjust gain such that amplitude ~= reference value. Attack rate/ Decay rate specify how fast to adjust the gain. |
|
VCO |
Voltage Control Oscillator |
|
|
DSP |
Digital Signal Processing |
Various digital filters based on DSP algorithms LP: Low Pass, HP: High Pass, BP: Band Pass, BG: Band Gap LS: Low Shelf, HS: High Shelf, BS: Band Shelf |
|
CTLE |
Continuous Time Linear Equalizer |
Parameter controlled or frequency response csv file. Real/Imag, Mag/Deg, or DB/Deg for column headers. Model will sample uniformly for given csv data. An Rx model that takes a forwarded clock signal of type "Times" will output (return) the same clock times it received. These settings can be enabled in the Reserved Parm tab. Models that take a forwarded clock signal of type "Wave" will not output clock times. |
|
DFE |
Decision Feedback Equalizer Clock Data Recovery |
Post-cursor with adaptation will be applied to current input Bang-bang phase detector is used for clock sampling. Slicer will take modulation scheme into account. |
|
PTH |
Pass Through |
Scale inputs to outputs with optional gain and DC-offset. User can specify a fixed offset and gain, y' = (y-offset)*gain. Or auto calculate scale and offset to clamp output ranges (bit-by-bit). This is useful to convert single-ended signals to differential ones. Inverse clamp can restore back to single-ended signals. An Rx model that takes a forwarded clock signal of type "Times" will output (return) the same clock times it received. These settings can be enabled in the Reserved Parm tab. Models that take a forwarded clock signal of type "Wave" will not output clock times. |
|
SPICE |
SSolver/NGSpice |
User's SSolver/NGSpice compatible .subckt definitions. Terminals are two inputs followed by two outputs. Assuming High-Z. Support parameters override. Simulator built-in, in this model. |
|
PROXY |
Script based proxy model |
User's Matlab, Python, C models as a .dll/.so, or executable without AMI compilation. License to make direct C-Python call for optimum performance. Note, currently, proxy AMI model does not work with other modules. |
: Waveform function (sin, square, etc)
: Fundamental frequency
: Initial Phase
: Scaling constant
