AMI Impulse Response in Spectral Domain

To plot the impulse responses:

1. Select Create Standard Report>Rectangular Plot.
2. Select your AMI Analysis as the Solution ;
   Spectral as the Domain;
   Voltage as the Category;
   InitialImpulseResponse, IntermediateImpulseResponse, or FinalImpulseResponse as the Quantity;
   and dB as the Function.

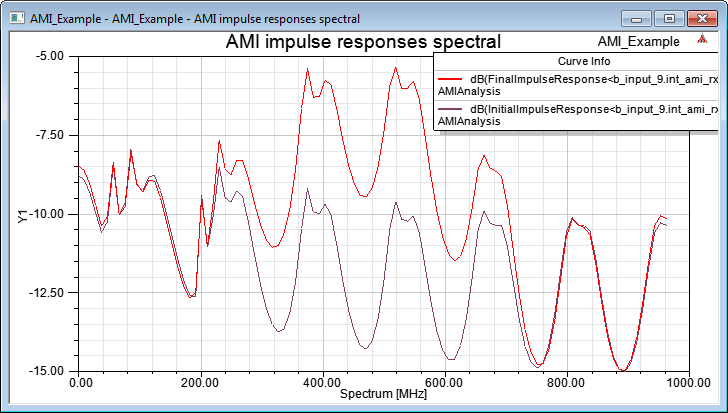

The following shows the initial and final impulse responses.

• The Initial Impulse Response is the one generated by the Circuit solver.
• The Final Impulse Response reflects any modifications made by the AMI transmitter and receiver at initialization.

For more information, see Plotting Spectral Domain Data in the Reports topic. (Although that topic mentions only transient solutions, the Context controls also apply to AMI analyses.)
