Exporting HFSS 3D Layout to Stride Format

HFSS 3D Layout can export Stride projects (*.project) files. Follow these steps to export a Stride .project file.

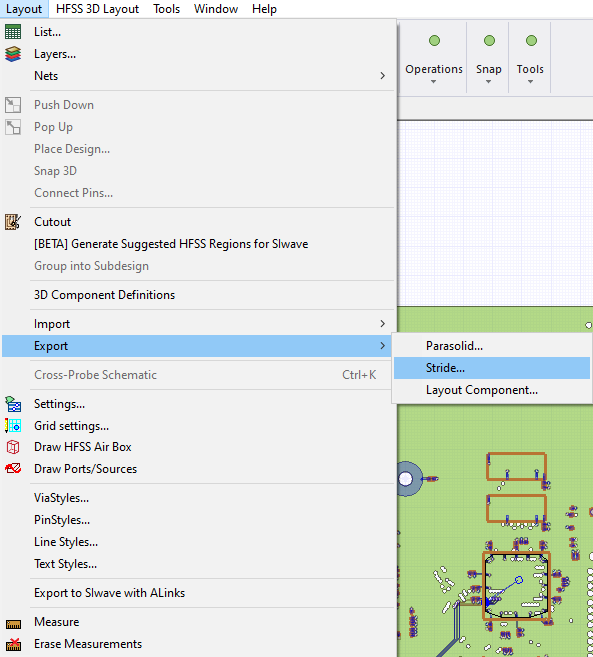

  1. From Layout, select Export > Stride to open an explorer window.

    Layout > Export > Stride...

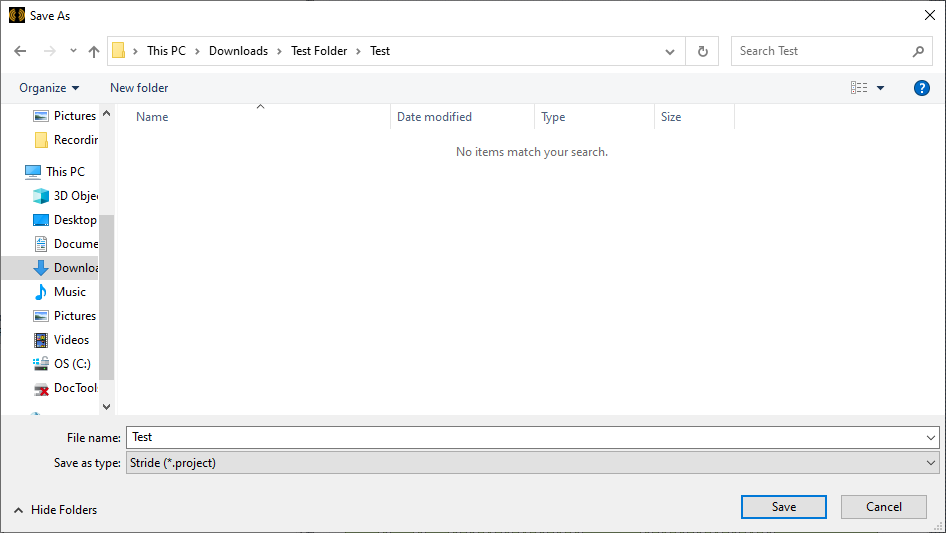

  2. Navigate to a selected directory to save the project.

    Explorer Window

  3. Enter a selected File name.
  4. Click Save.
