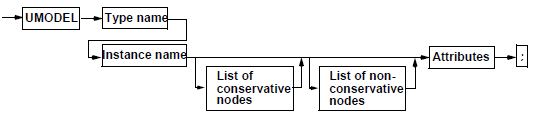

UMODEL

Keyword for internal simulator models.

Type name:

Name of the model in the model library.

Instance name:

User-defined name for using the model.

Conservative nodes:

List of conservative nodes (if existing) separated by a comma.

Nonconservative nodes:

List of nonconservative nodes (if existing) separated by a comma.

Attributes:

The SRC attribute defines the DLL file of the model.

UMODEL VOL_CONST VOL_CONST1 H1:=N0002 ( VOL:=100u ,B:=700meg ) SRC: DLL( LIB:="Multiphysics\Hydraulic") ;
