MODEL Instance

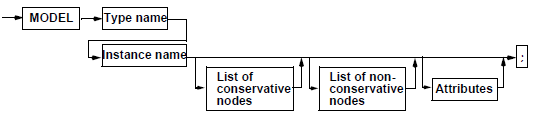

The MODEL model instance is used for user-defined structural models (all kind of macros), which are included in a model library or defined with a SMLDEF statement.


MODEL	Keyword for internal simulator models.
Type name:	Name of the model in the model library.
Instance name:	User-defined name for using the model.
Conservative nodes:	List of conservative nodes (if existing) separated by a comma.
Nonconservative nodes:	List of nonconservative nodes (if existing) separated by a comma.
Attributes:	The SRC attribute defines the source model library and identifier. Both can be omitted, the simulation speed, however, is slacked because of that.
MODEL TFR1P2W TFR1P2W1 N1_A:=N0002, N1_B:=GND, N2_A:=N0005, N2_B:=N0006 (LM:=0.1 ,LS1:=1m ,LS2:=1m ,RFE:=1.0e+018 ,RCU1:=1u ,RCU2:=1u ,KTR:=1 ) SRC: DB(LIB:="Basic Elements\Basic Elements");
