Displaying Results and Post Processing (ModelSim)

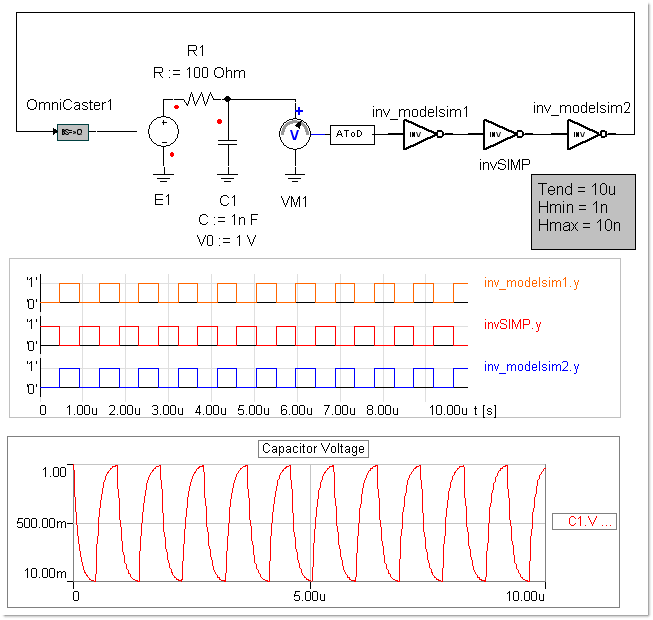

Any outputs crossing the co-simulation interface can be displayed in both Twin Builder and ModelSim. Internal ModelSim signals can be logged separately in ModelSim through the ModelSim UI at anytime after the ModelSim setup is complete. The following figure shows the results of the simulation for the ring oscillator example as seen in Twin Builder.
