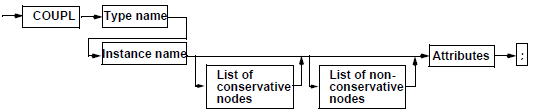

COUPL

Keyword for internal simulator models.

Type name:

Name of the model in the model library.

Instance name:

User-defined name for using the model.

Conservative nodes:

List of conservative nodes (if existing) separated by a comma.

Nonconservative nodes:

List of non-conservative nodes (if existing) separated by a comma.

Attributes:

The SRC attribute defines the .dll file of the model.
