Viewing and Exporting Impedance Plots

Prerequisites:

• Use the Impedance Wizard to calculate trace width/pitch, impedance, or differential impedance.

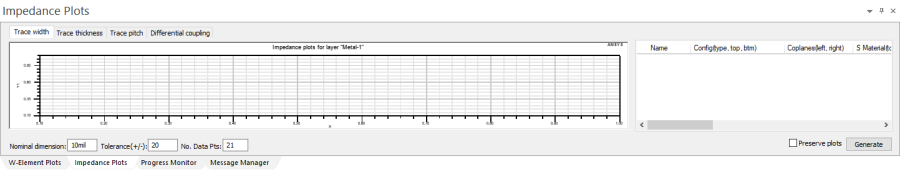

Impedance plots update as you change inputs in the Impedance Wizard pane and as you change any settings underneath the plot. The table to the right summarizes the configuration. To display more than one dataset, enable Preserve Plots to keep any plotted data displayed even after you make a new calculation.

For more details about these plots, see: Calculating Impedance, Calculating Differential Impedance, and Calculating Trace Width/Pitch.

To export an impedance plot from SI Xplorer:

1. Use the tabs at the top to select a plot for display.
2. Click Generate.
