Round Wire Winding

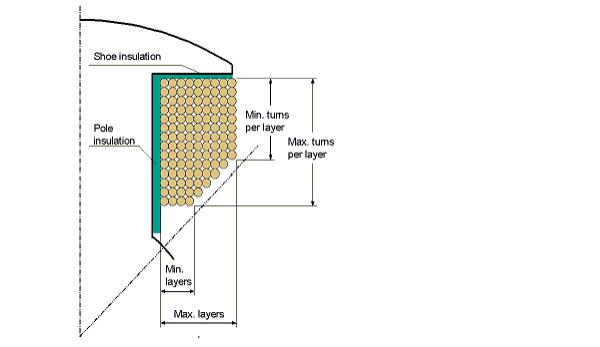

The arrangement of pole winding with round wire is shown below.

With auto-arrangement of pole windings, RMxprt calculates maximum number of layers, minimum number of layers, maximum number of turns per layer, minimum number of turns per layer, and the maximum number of turns per pole that is available from the limited space, and so forth.
