PM_INTERIOR Rotor Core Pole Types

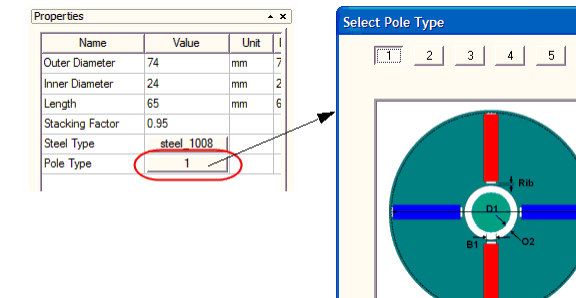

The PM_INTERIOR rotor core type supports six pole types. You can choose the pole type by selecting the Machine > Rotor > Core entry in the project tree, then clicking the Pole Type button in its Properties window to open the Select Pole Type window.

The six available pole types are shown below. Refer to Defining Data for the PM_INTERIOR Core Type for details on defining the various pole properties.




Pole Type 1



Pole Type 2




Pole Type 3



Pole Type 4




Pole Type 5



Pole Type 6
