Assigning a Voltage Excitation

To set a voltage excitation for the 3D Eddy Current A-Phi Solver:

  1. Select the section of the geometry on which you want to apply the excitation.
  2. Click Maxwell 3D > Excitations > Assign > Voltage. The Voltage Excitation window appears.
  3. Enter a name for the excitation in the Name field, or accept the default.
  4. In the Parameters section:
    1. Enter the electric potential in the Value field, and select the unit from the drop-down menu. You can enter a numerical value.
    2. Enter a value in the Phase field, and select a unit from the drop-down menu.
    3. Choose the Excitation model. Refer to the next section for details on the options.
    4. Optionally, to change the direction of the voltage flow, click Swap Direction.
  5. Optionally, click Use Defaults to revert to the default values in the window.
  6. Click OK to assign the excitation to the selected object.

Excitation Models

Voltage excitation supports three different excitation models: Single Potential, Double Potentials, and Double Potentials with Ground.

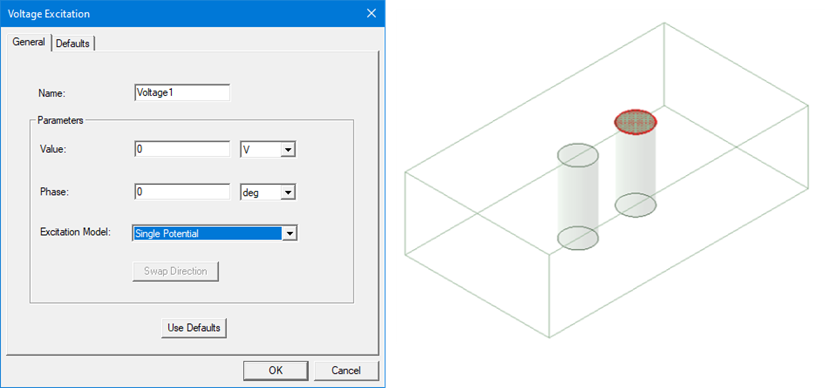

Single Potential

The solver treats the terminal as an equipotential terminal. Only one scalar electric potential DOF (Degree of Freedom) is assigned to the surface, and the value of the DOF is set to the value that the user inputs.

Important: This model must only be used at the external boundaries of the problem domain.

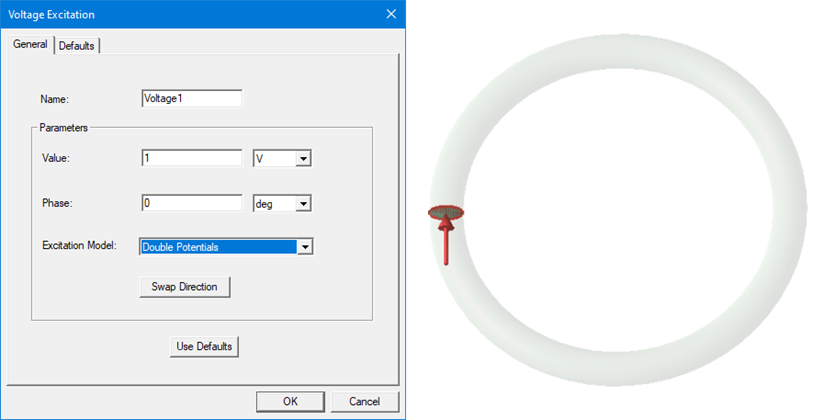

Double Potentials

The solver treats the terminal as a voltage (potential drop) terminal. At the terminal face, two scalar electric potential DOFs are defined, and the DOFs are unknown. The difference between those potentials equals the voltage value that the user specified. If the voltage value is a positive quantity, the higher potential is in the specified direction.

Important: This model must be used on faces inside the problem domain.

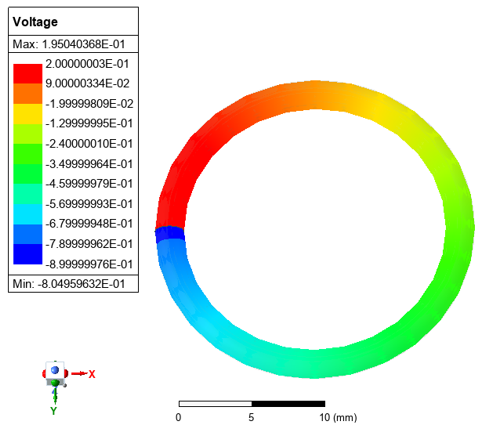

The voltage profile for Double Potentials is shown below:

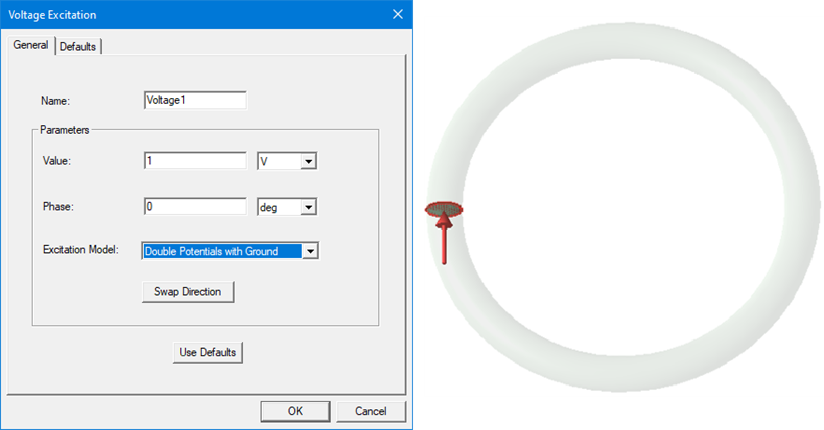

Double Potentials with Ground

The solver treats the terminal as a voltage (potential drop) terminal. At the terminal face, two scalar electric potential DOFs are defined, and both DOFs are known. The difference between those potentials equals the voltage value that the user specified. If the voltage value is a positive quantity, the DOF in the specified direction is set to the specified voltage value, and the DOF in the opposite direction is set to 0.

Important: This model must be used on faces inside the problem domain.

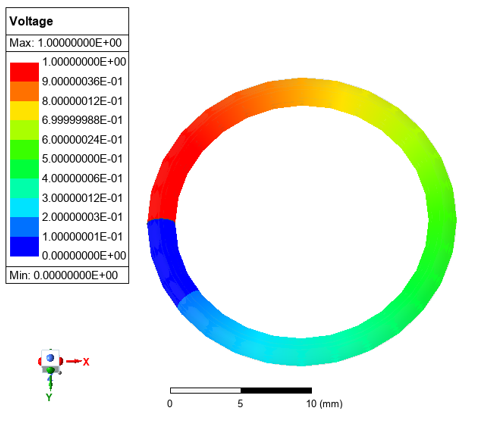

The voltage profile for Double Potentials with Ground is shown below:
