Cylinder Coil

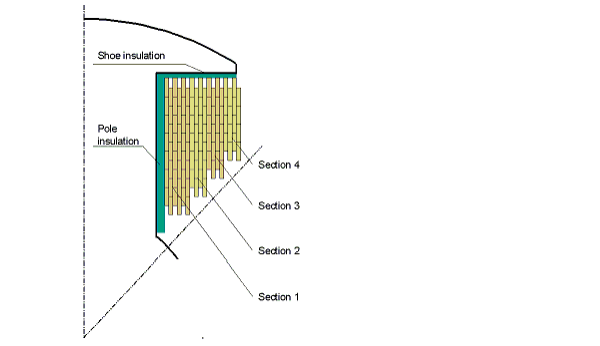

The arrangement of magnetic-pole winding with rectangular wire wound in standing way by the RMxprt application is shown below.

The cylinder coil is wound with half-turn over lapped layer by layer. Layers with the same number of turns constitute a section. The output window Design Output displays the number of layers and the number of turns per layer of each section, and the maximum number of turns per pole that is available from the limited space.
