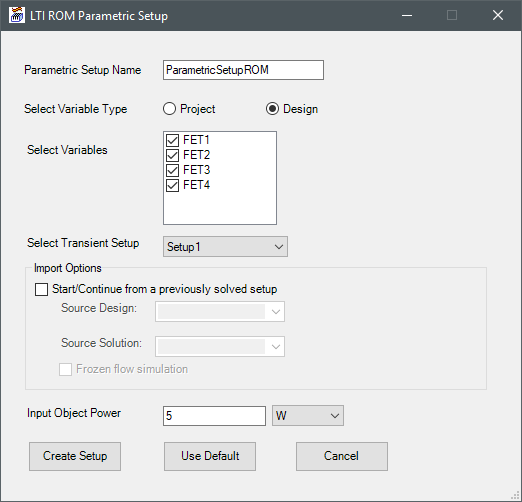

LTI ROM Parametric Setup

LTI ROM Parametric Setup enables you to quickly create a parametric setup for state-space characterization. See State-Space Characterization for more information.

Note:

See Getting Started with Icepak - LTI ROM for a workflow related to this feature.

Parametric Setup Name	Enter a name for the parametric setup.
Select Variable Type	Select Project or Design to display project or design variables in the Select Variables list.
Select Variables	Select the variables to include in the parametric setup.
Select Transient Setup	Select the transient solution setup.
Import Options	Select Start/Continue from a previously solved setup to link to the steady-state design. Select the design and solution from the drop-down lists. If the steady-state design solves for flow and temperature, select Frozen flow simulation.
Input Object Power	Specify the power for the input objects for the parametric trials.
Create Setup	Click Create Setup to create the parametric setup, which is listed under Optimetrics in the Project Manager.
