Maximum Normal Deviation (Angle)

Maximum Normal Deviation is the maximum angular deviation between any two normals on a curved surface approximated by a faceted triangulation. The following figures illustrate the effect of using different maximum normal deviation angles on a cylindrical surface. In the following figure, the cylinder radius is 0.5 mm and its height is 1.5 mm.

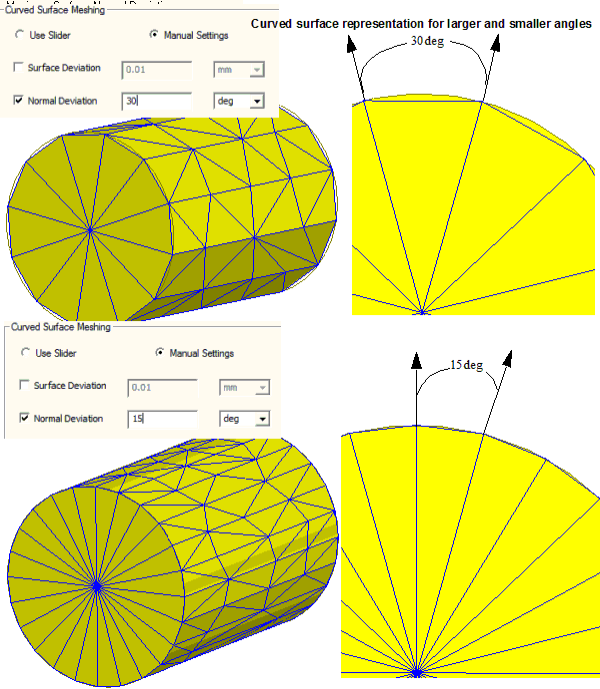

Curved Surface Meshing groupbox. Manual settings enabled. Normal deviation set to 30 degrees. Model shown with 30 degree deviation angles. Curved Surface Meshing groupbox. Manual settings enabled. Normal deviation set to 15 degrees. Model shown with 15 degree deviation angles.
