HFSS Mesh Errors

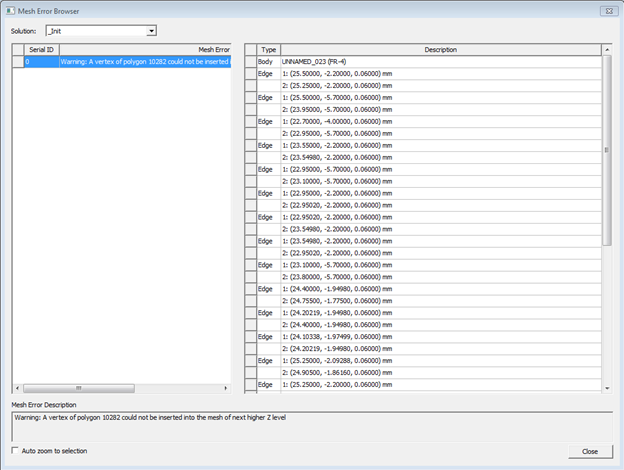

For a given HFSS Setup, in the event of a failure or a difficult mesh, errors, warnings and information may be generated. When available, this feedback can be accessed in the Project Tree by right-clicking on the HFSS Setup and choosing View Mesh Feedback. This invokes the Mesh Error Browser window:

For each Mesh Error, a brief description is provided. When a given error is selected in the window, details and dimensional attributes for the contributing bodies are displayed. When one or more Type entities are selected, a graphical overlay are displayed in the Layout view to better visualize the feedback.
