Exporting Netlist Data

Complete these steps to export the netlist representation of a schematic design to a file.

1. Click Browse Netlist to make the Netlist Editor the active window.

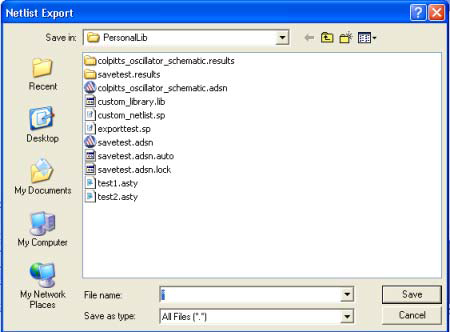

2. Click on Netlist in the top menu bar, and select Export. The Netlist Export window opens:



3. From the Save in field, browse to the directory where the netlist file is to be saved,
4. From the File name field, enter the complete name of the file, including the extension if any.
5. Click Save to save the netlist file and close the window, or click Cancel to cancel the export operation without saving anything.
