Distributed Machine Configurations for Ansys SIwave™ in HFSS 3D Layout

To create a new distributed machine configuration, or edit an existing machine configuration, click Tools > Edit Active Analysis Configuration to open the Analysis Configuration window directly or click the Analysis settings icon on the toolbar.

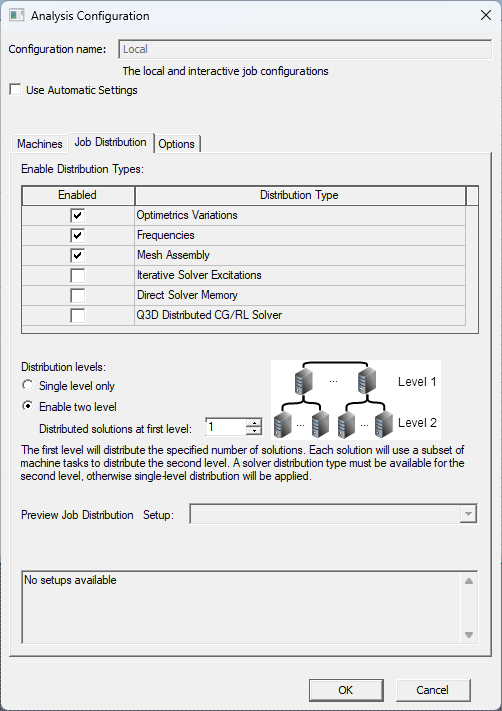

Job Distribution Tab

When Level 2 is enabled for Ansys SIwave™ printed circuit board (PCB) and package electromagnetics simulation software parametric setups, the first level distributes variations and the second level (SIwave solver) distributes frequencies.
