Prerequisite

To perform the training exercise, you need the relevant designs and the corresponding footprints available at the following location: Examples>Circuit>Low Noise Amplifier.

Ansys Electronics Desktop

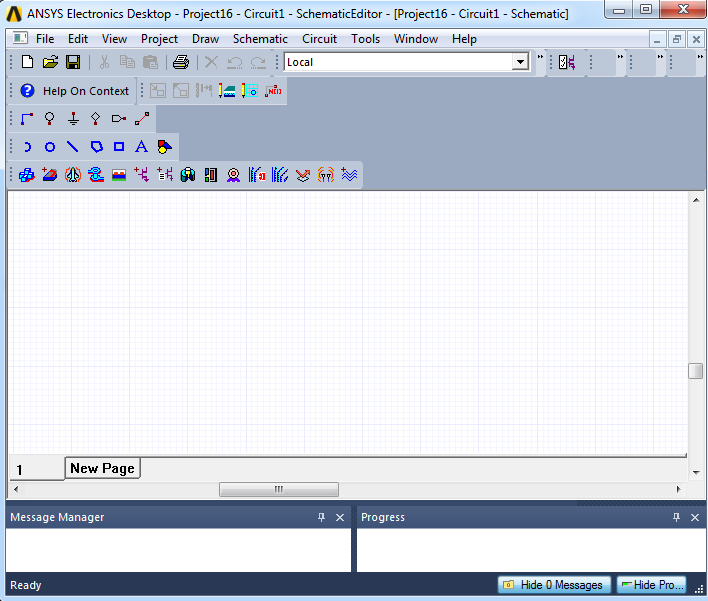

The Electronics Desktop provides a comprehensive environment for designing and simulating various electronic components and devices. The following figure shows the Ansys Electronics Desktop with Circuit Design included.

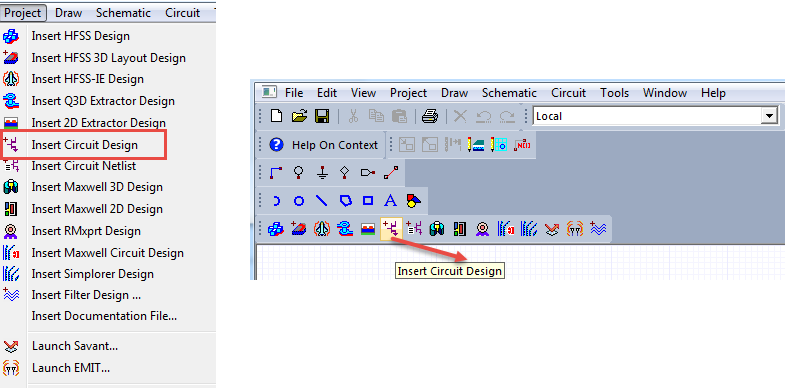

Electronics Desktop supports many design types. They appear as icons on the toolbar and under the Project menu. The relevant design type for simulating Low Noise Amplifier using an s-parameter model of NEC NE68133 BJT, is Circuit Design, which is illustrated in the following figure.

Insert Circuit Design

Enable Legacy View

To view orientations consistent with the instructions and images in the guide, enable legacy view navigation.

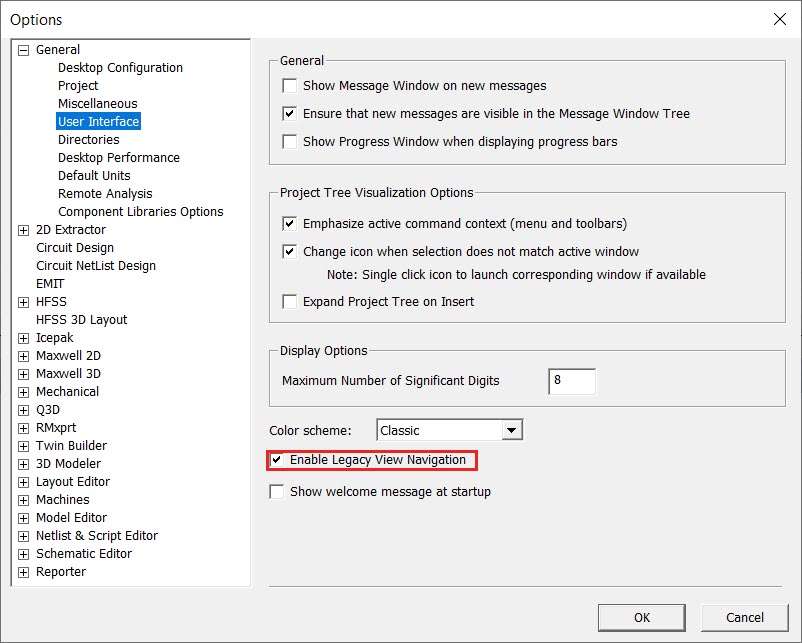

1. Go to Tools > Options > General Options.

2. From the Options window, expand General and select User Interface.

3. Check Enable Legacy View Navigation
