Transient Cosimulation Component Interface

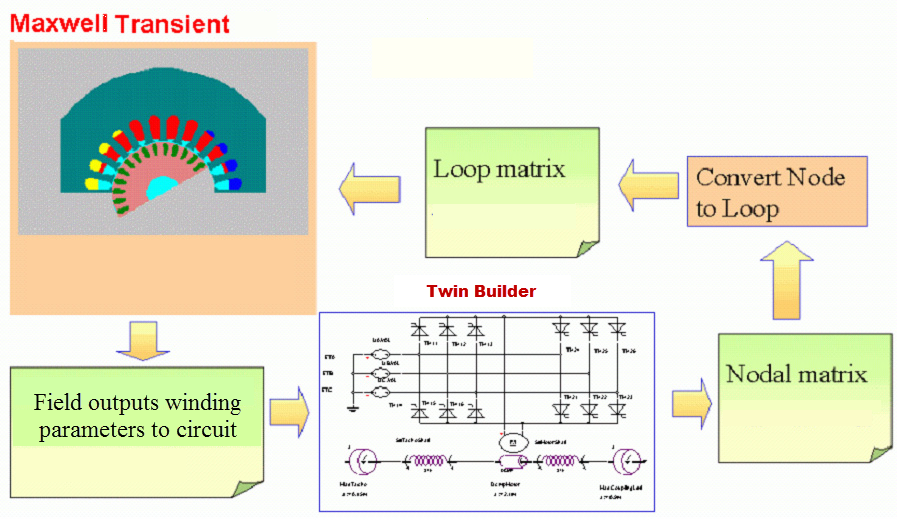

The Maxwell 2D and 3D Transient solvers incorporate circuit equations into the finite element system of equations. Maxwell uses a loop form of the circuit equations, while Twin Builder uses a nodal form of the circuit equations. After each time step, Twin Builder forms a Norton-equivalent of the drive circuit at the coupling pins between the Maxwell component and the rest of the system. Maxwell converts this to a loop matrix, solves the finite element equations, then outputs a Thevenin-equivalent for the next Twin Builder time step. This parameter-based coupling enhances solution accuracy and stability.

Twin Builder controls the time step during simulation and also controls the rotational speed or linear velocity of the Maxwell component.

At each time step each solver creates a drive circuit at the coupling pins looking into the other system:

• Twin Builder sees the Maxwell Winding as a Thevenin equivalent circuit with a specified source-voltage, resistance, and inductance at each time step.
• Maxwell sees the Twin Builder circuit as a Norton-equivalent circuit with a specified source-current and admittance at each time step.
• For the Mechanical coupling, The Position is imposed by Twin Builder to Maxwell and the Torque is imposed to Twin Builder by Maxwell.

During each time step, the two solvers exchange coupling matrix data using TCP/IP sockets. Since the data exchange is relatively small, the Maxwell 2D or 3D Transient and the Twin Builder transient solvers can run on different computers, as long as they have access to each other over a network.
