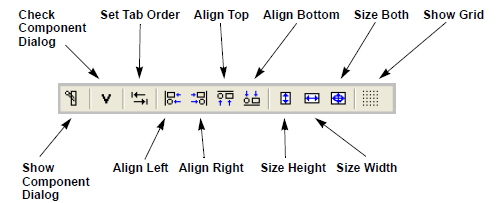

Component Dialog Wizard Layout Toolbar

The Layout toolbar contains commands for the Component Dialog Wizard.

• Show Component Dialog – Generate a preview of the component dialog box.
• Check Component Dialog – Start the utility for checking if the component dialog box is complete with respect to non-conservative input nodes and free values.
• Set Tab Order – Start the utility for setting the tab order of component dialog box elements.
• Align Left – Align all selected dialog box elements with the left edge of a reference element.
• Align Right – Align all selected dialog box elements with the right edge of a reference element.
• Align Top – Align all selected dialog box elements with the top edge of a reference element.
• Align Bottom – Align all selected dialog box elements with the bottom edge of a reference element.
• Size Height – Size all selected elements to have the same height as a reference element.
• Size Width – Size all selected elements to have the same width as a reference element.
• Size Both – Size all selected elements to have the same height and width as a reference element.
• Show Grid – Toggle display of the Component Dialog Wizard's grid.
