Editing the DC Coefficient Text File

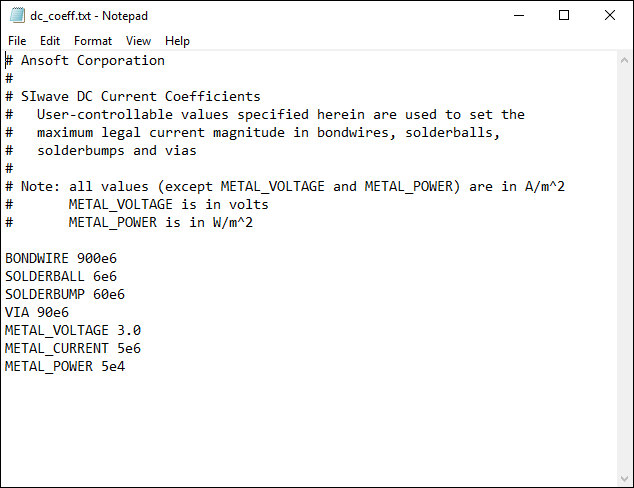

By default, the DC Coefficient text file (dc_coeff.txt) is automatically installed in the <install_root>\v242\Win64 (or Linux64) directory. In this file, you can set the threshold values for bondwires, solderballs, solderbumps and vias, as well as for metal voltage, metal current and metal power. All values must be positive.

Changing the DC Coefficient Text File Installation Directory

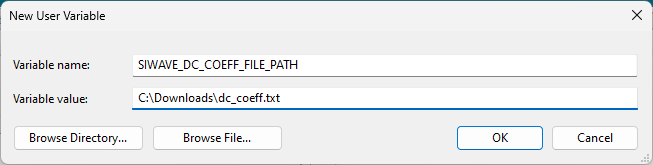

To change the DC_coeff.txt file's installation directory, create the environment variable SIWAVE_DC_COEFF_FILE_PATH. From the value field, enter the dc_coeff.txt file's new directory path.
