Displaying a Cell Graph Across All Frequencies

Network Data Explorer can plot a cell across all frequencies.

1. From the ribbon, use the Parameter type drop-down menu to select S parameter, Y parameter, or Z parameter.
2. Click Sweep.

   The settings in the ribbon will look like this:



3. From the Cell and Frequency Selection pane, select frequencies to display.



   Alternately, enable the Select All check box on the ribbon to select all frequencies.

4. To add a log scale to the X-axis, click Log X-Axis on the NDE ribbon.
5. To add a log scale to the Y-axis, click Log Y-Axis on the NDE ribbon.

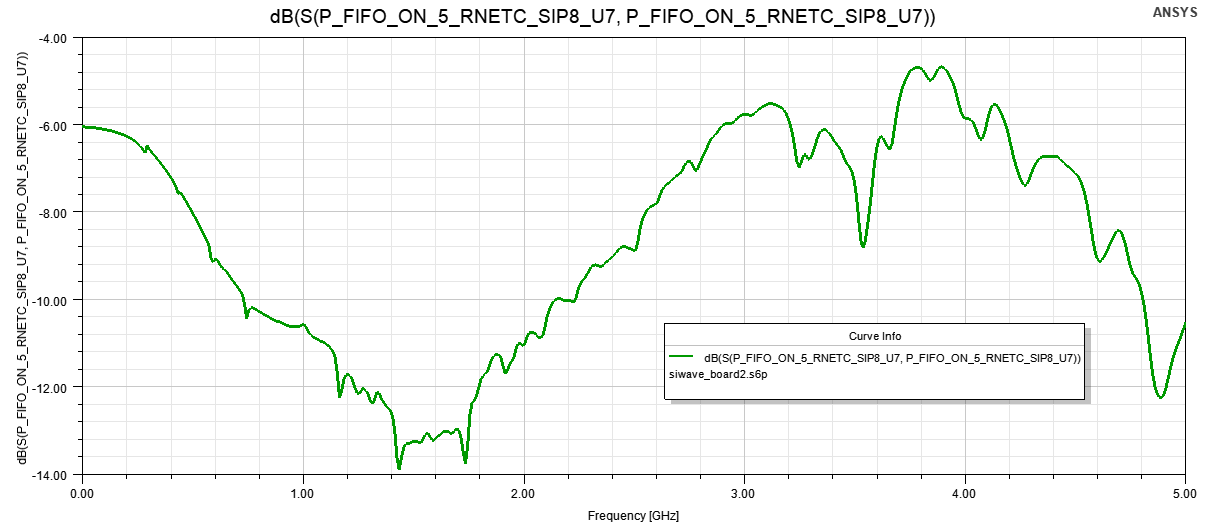

The graph displays. Right-click the graph to view additional commands.
