Displaying Individual Statistics for All Frequencies

To view individual statistics across all frequencies:

  1. From the ribbon, click Sweep.
  2. Ensure that Table and Show Statistics are selected.

    The selections in the ribbon should look similar to this:

    Show Stats Across Frequencies

  3. From the Cell and Frequency Selection pane, select statistics to display.

    Stat Selection

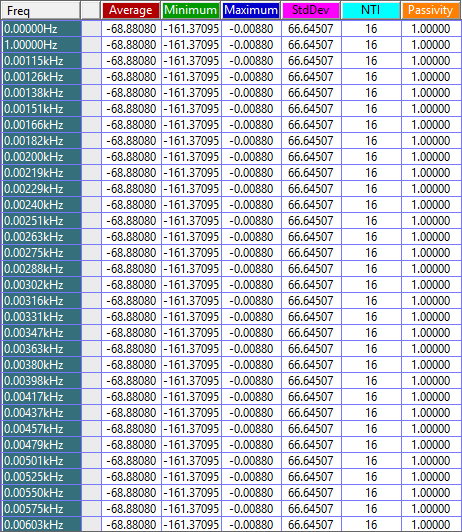

Selected statistics are displayed for all frequencies.

Stat Chart

Passivity is only available for S-parameters (comparisons inactive).

For S-parameters, the Number of Trivial Items (NTI) includes all values of 0 and 1. For other data and data comparisons, only values of 0 are counted as trivial.
