Creating a Statistics Plot

Network Data Explorer can display a graph of selected statistical measures across all frequencies.

  1. From the ribbon, click Sweep.
  2. Ensure that Show Statistics is enabled.

The selections on the ribbon should look similar to this:

Stat Plot

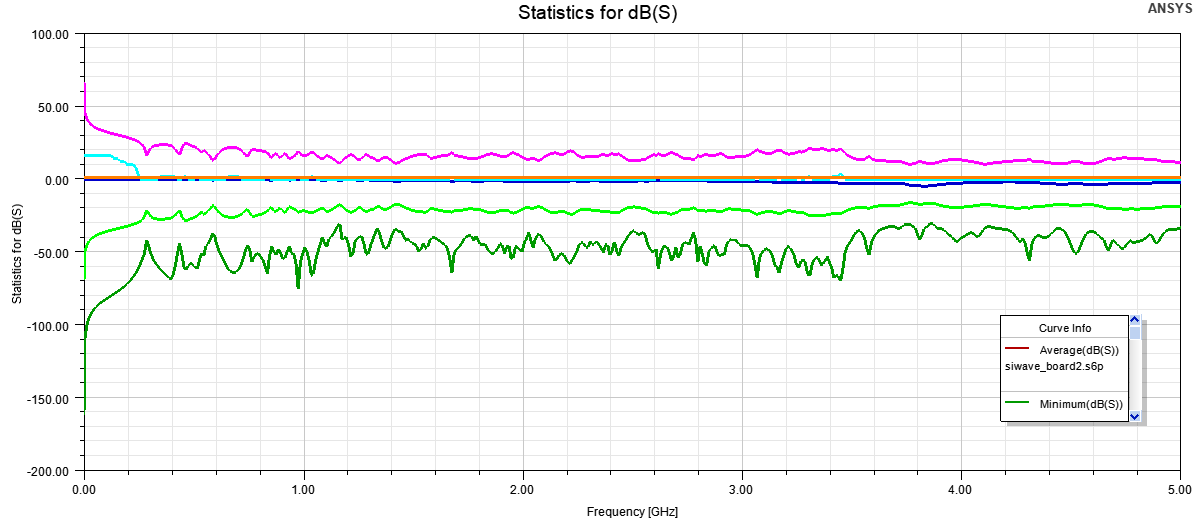

The selected statistics are plotted.

Statistics Plot

Hover the cursor over a statistic to view more information about it.

Passivity is only available for S-parameters (comparisons inactive).

For S-parameters, the Number of Trivial Items (NTI) includes all values of 0 and 1. For other data and data comparisons, only values of 0 are counted as trivial.
