Checking for Disjoint Nets

To check for disjoint nets:

1. From the Nets workspace, select the nets you want to check. Selected nets display with checked boxes.
2. Click Tools. From the Net Operations box, click the Check if Disjoint icon ().

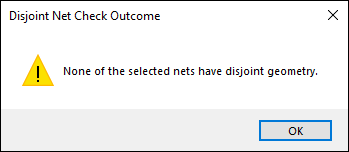

The Disjoint Net Check Outcome window appears, showing the results.
