Example Projects

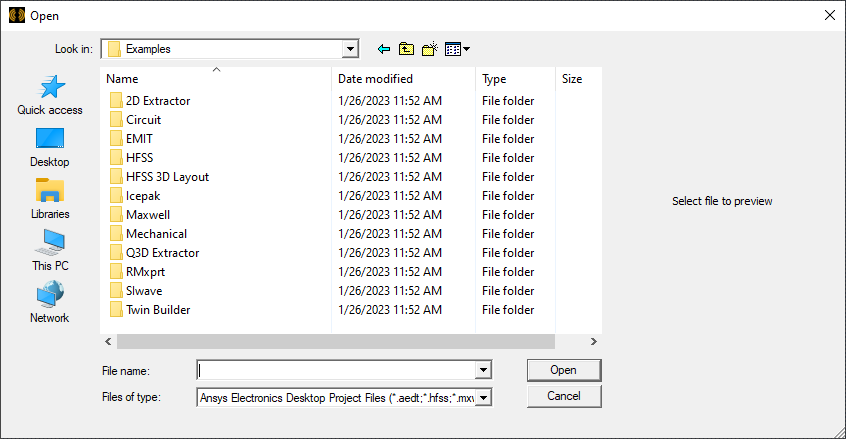

Your Ansys Electronics Desktop installation includes an example directory containing projects folders for several kinds of designs.
Example projects are organized by the design type.
Several of these projects are associated with detailed getting started guides.
Mechanical Example Projects

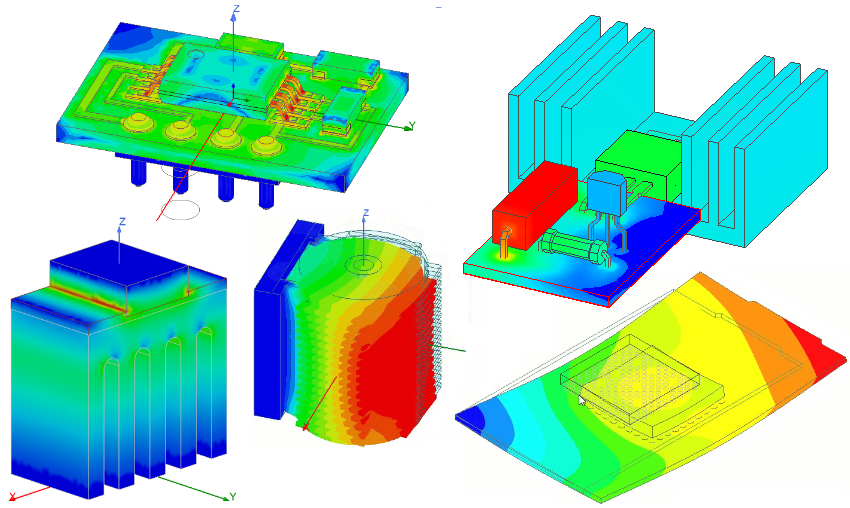

The Mechanical examples folder contains four projects—one modal, one thermal, and two structural. These projects are fully set up with boundaries, excitations, solution setups, results plots, and mesh and field overlays. However, the solutions have not been run, and you cannot review the results until you save the projects to a working folder and solve the analyses. These projects are not associated with any Mechanical Getting Started Guides but are in addition to them.
Click one of the following links for more information:
- Modal Example:
- Thermal Examples:
- Steady-State:
- Transient:
- Structural Examples:
