Write Command
This command saves the contents of the top register to a disk file. Use this command to
- Save registers for use during a later postprocessing session.
- Save a field quantity for use when postprocessing a different model.
Note:
Use of the Global
Coordinate System is assumed. Local coordinate systems are not used.
To save a register:
- Click Write.

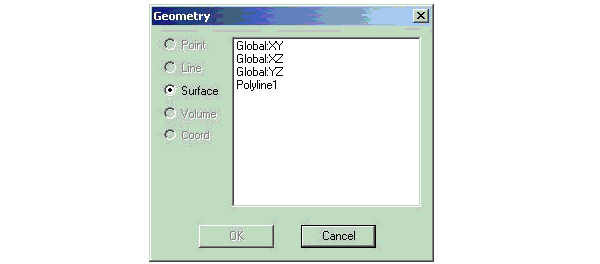

- If the register includes numeric with a constrained quantity (such as jsurf), you see a dialog that gives a choice of constraining geometries. For example:
- Select the geometry of interest, and select OK.
This displays a file browser.
- Use the file browser to specify the register’s file name and directory path. A .reg extension is automatically assigned to register files and a .fld extension is assigned to field files. You can choose to save both .reg and .fld files, or either one.
- Click OK.
The contents of the file are saved to the file you specified.
