WaveCoil UDP
The WaveCoil UDP is used to create a wave-type coil in a slotted core created by the SlotCore or VentSlotCore UDP.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, DiaGap < DiaYoke for outer cores. |
|
DiaYoke |
Core diameter on yoke side, DiaYoke < DiaGap for inner cores. |
|
Length |
Core length. |
|
Skew |
Skew angle in core length range. |
|
Slots |
Number of slots. |
|
SlotType |
Slot Type: 1 to 7. |
|
Hs0 |
Slot opening height. |
|
Hs1 |
Slot wedge height. |
|
Hs2 |
Slot body height. |
|
Bs0 |
Slot opening width. |
|
Bs1 |
Slot wedge maximum width. |
|
Bs2 |
Slot body bottom width, 0 for parallel teeth. |
|
Rs |
Slot body bottom fillet. |
|
FilletType |
0: a quarter circle; 1: a tangent connection. |
|
Layers |
Number of winding layers. |
|
CoilPitch |
Coil pitch measured in slots. |
|
EndExt |
One-side end extended length. |
|
SpanExt |
Axial length of end span; 0 for no span. |
|
SegAngle |
Deviation angle for slot arches (5~15, <5 for true surface). |
|
PolePitch |
Pole pair pitch measured in slots. |
|
LenRegion |
Region length. |
|
InfoCoil |
0: winding; 1: one coil; 100: region. |
The following three figures illustrate these parameters of wave coil.
- A slot core (orange) is used as reference to better present the parameters and position of the wave coil.

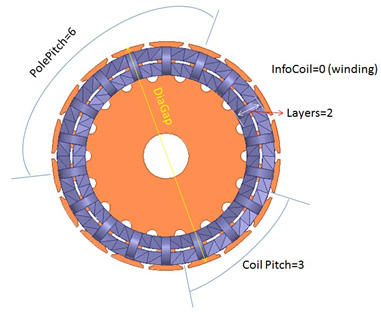

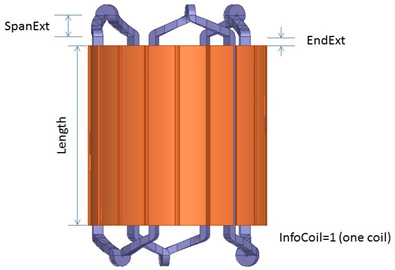

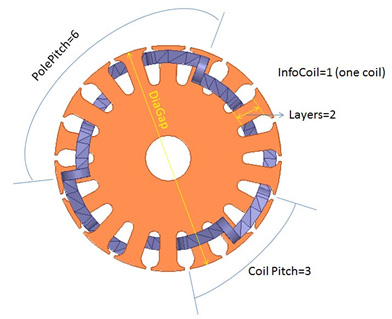

- Most parameters in a wave coil are similar or exactly the same as those in a lap coil except PolePitch. One Wave Coil shows the definition of the parameter PolePitch. A Whole Winding Wave Coil presents a winding wave coil that can be compared with a single wave coil in One Wave Coil. Further, Parameters of Wave Coil in Axial Direction gives an overview of parameters in axial direction.
- For parameters such as Skew, FilletType, SegAngle and parameters related to slots, refer to SlotCore UDP parameters.
