Viewing Parameter Data

To view parameter solution data such as force and torque:

  1. In the Project Manager tree, right-click the solution of interest in the Parameters folder, and then click View Solution on the shortcut menu.

    2. The Solutions window appears.

  2. The Design Variation box shows the current design.

    3. Optionally, click the [...] button, and choose a design variation solved during an optimization or parametric analysis from the Set Design Variation dialog box.

  3. In the Simulation drop-down menus:
    • Select the solution setup from the first drop-down menu.
    • Select the solved pass data you wish to view from the second drop-down menu, either the last adaptive pass or one of the intermediate passes.
  4. On the desired parameter tab, such as Force or Torque, select a Parameter and optionally an adaptive Pass to view.

    5. Depending on the solution type you selected, you may have to specify

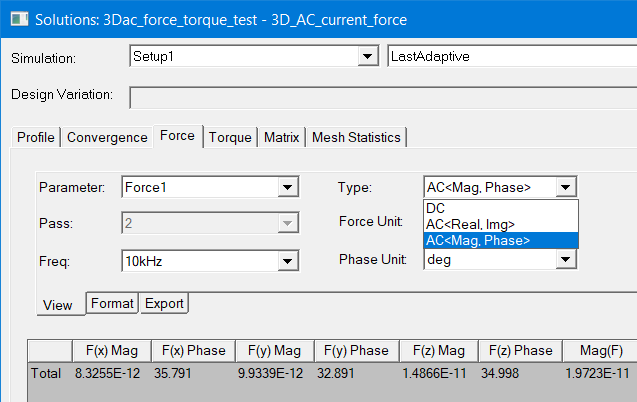

    • Type – In the screenshot the follows, the simulation was a 3D AC Conduction analysis, so the user has three types of simulation results to select from.
    • Force Units – Specifies the units in which to display the information. The available units depend on the matrix type being displayed.
    • Phase Unit – This setting is available if the Type of result includes phase data.

  5. Optionally, to export the parameter solution data:
    1. Click Export Solution to open the Export Solution dialog box appears.
    2. Select a location for the solution data.
    3. Type a filename in which to store the data in the File name text box.
    4. Click Save.
  6. Click Close to close the Solutions window.
