VentSlotCore UDP

The VentSlotCore UDP can create the same core that the SlotCore UDP does. However, the VentSlotCore UDP can create cores with radial vents and axial holes. If you want to create a slotted core without radial vents or axial holes, use the SlotCore UDP to have less data input.

Property	Description
DiaGap	Core diameter on gap side, DiaGap < DiaYoke for outer cores.
DiaYoke	Core diameter on yoke side, DiaYoke < DiaGap for inner cores.
Length	Core length.
Skew	Skew angle in core length range.
Slots	Number of slots.
SlotType	Slot Type: 1 to 6.
Hs0	Slot opening height.
Hs01	Slot closed bridge height.
Hs1	Wedge height.
Hs2	Slot body height.
Bs0	Slot opening width.
Bs1	Slot wedge maximum width.
Bs2	Slot body bottom width, 0 for parallel teeth.
Rs	Slot body bottom fillet.
FilletType	0: a quarter circle; 1: a tangent connection; 2&3: arc bottom.
HalfSlot	0 for symmetric slot; 1 for half slot.
VentHoles	Number of axial vent holes per row.
HoleDiaIn	Diameter of inner vent holes.
HoleDiaOut	Diameter of outer vent holes.
HoleLocIn	Diameter of inner vent hole center layout circle.
HoleLocOut	Diameter of outer vent hole center layout circle.
VentDucts	Number of radial vent ducts.
DuctWidth	Axial width of radial vent ducts.
DuctPitch	Center-to-center distance between two adjacent ducts.
SegAngle	Deviation angle for slot arches (10~30, <10 for true surface).
LenRegion	Region length.
InfoCore	0: Core; 100: region.

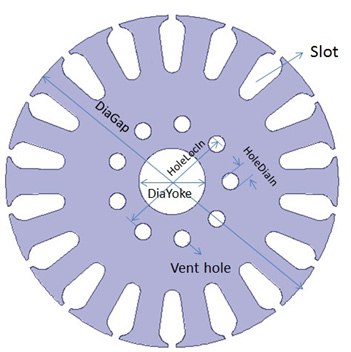

These parameters are used in the following inner VentSlotCore example. The first figure shows the parameters on the cross-section of VentSlotCore:

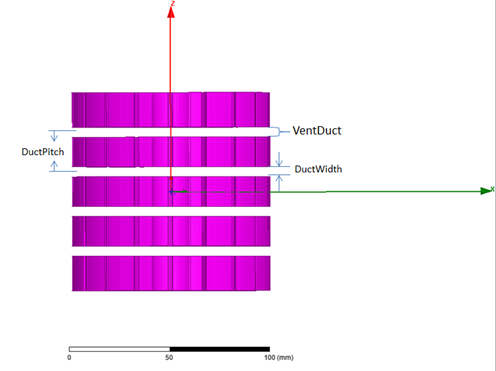

The next figure shows the parameters on axial direction of VentSlotCore:

Note: For parameters such as Skew, FilletType, SegAngle, HalfSlot and parameters related to slots, refer to SlotCore UDP parameters.
