VentCore UDP
The VentCore UDP is used to create a vent core, a vent shaft, vent ducts, as well as notches, for various cores of electrical machines. A vent core can be used as a base object from which some tool objects can be subtracted to form various machine cores. The vent ducts and notches can also be used as tools to be subtracted from other machine cores.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, or outer diameter. |
|
DiaYoke |
Core diameter on yoke side, or inner diameter. |
|
Length |
Core length. |
|
Poles |
Number of poles for notches. |
|
DepthNotch |
Notch depth. |
|
ThkBridge |
Bridge thickness. |
|
ArcNotchOut |
Notch outer arc, in electric degrees. |
|
ArcNotchIn |
Notch inner arc, in electric degrees. |
|
Ducts |
Number of axial vent ducts. |
|
DuctType |
0: none; 1: circular; 2: shaft spoke; 3: arc; 4: rectangular. |
|
DiaDuctCenter |
Diameter of duct center (not for shaft spoke). |
|
HeightDuct |
Duct height in radial direction. |
|
WidDuct/WidWeb |
Duct width (rectangular) or web width (shaft spoke, arc). |
|
RadDuct |
Duct radius (circular) or corner radius (arc, rectangular). |
|
AngDuctShift |
Duct shift angle. |
|
LenRegion |
Region length. |
|
InfoCore |
0: core; 1: shaft; 2: ducts; 3: notches; 100: region. |
Most parameters for a VentCore UDP are shown in the figures below except common parameters like DiaGap, DiaYoke, and Length.

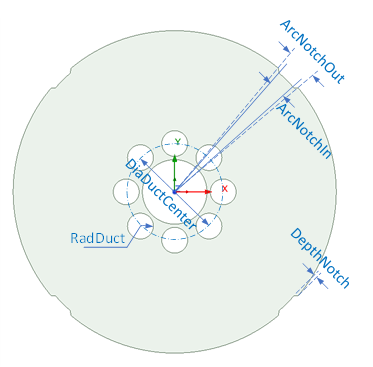

Parameters of VentCore UDP (DuctType = 1).

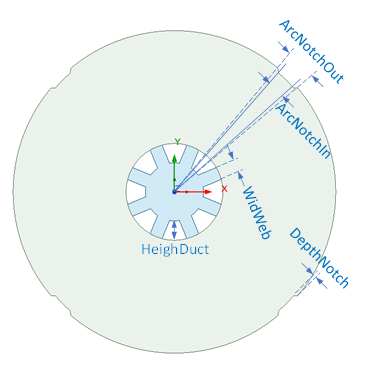

Parameters of VentCore UDP (DuctType = 2).

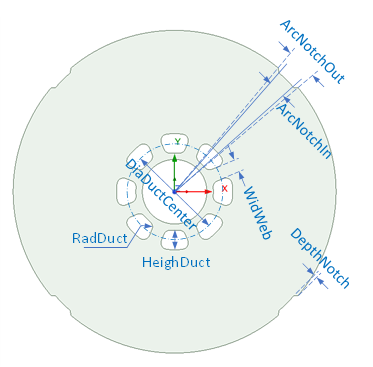

Parameters of VentCore UDP (DuctType = 3).

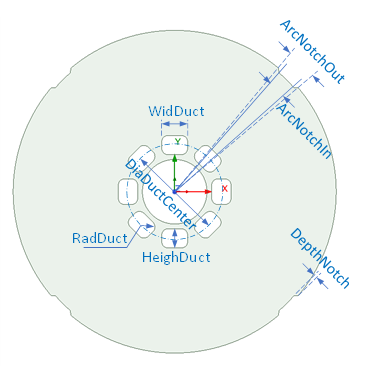

Parameters of VentCore UDP (DuctType = 4).
