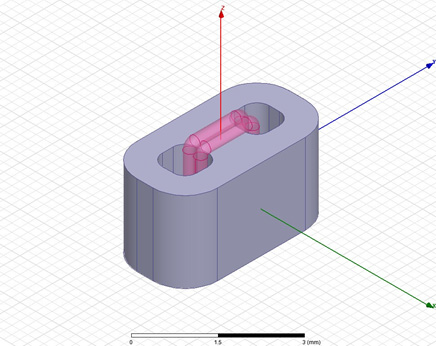

CoreType

1: shell-type; 2: core-type

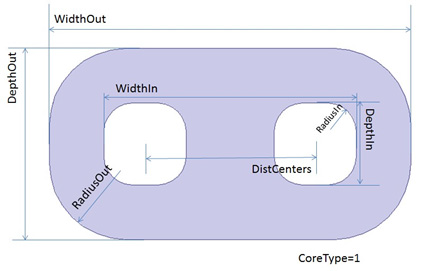

WidthOut

Core outer width

DepthOut

Core outer depth in coil turn direction

RadiusOut

Core outer fillet radius

WidthIn

Core window width

DepthIn

Core window depth in coil turn direction

RadiusIn

Core window fillet radius

DistCenters

Window center-to-center distance, for shell-type only

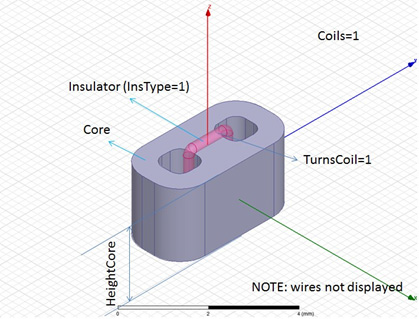

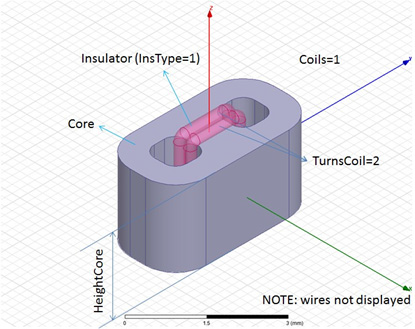

HeightCore

Core height

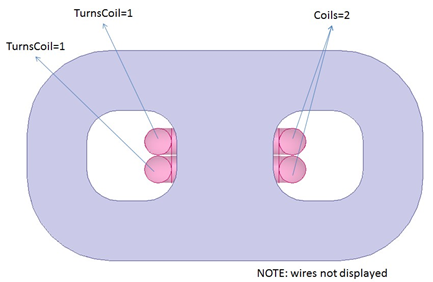

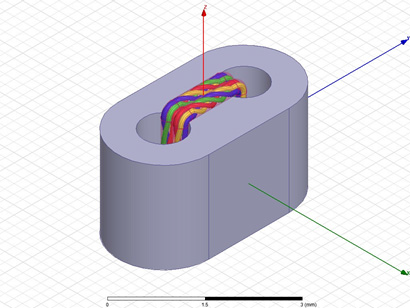

Coils

Number of coils: 1 or 2

WiresCoil

Wires per coil: 1, 2, 3, or 4 (no twist for 1 wire)

TurnsCoil

Number of turns per coil

TurnsTwist

Total twist turns in one coil turn; 360 degrees in one twist turn

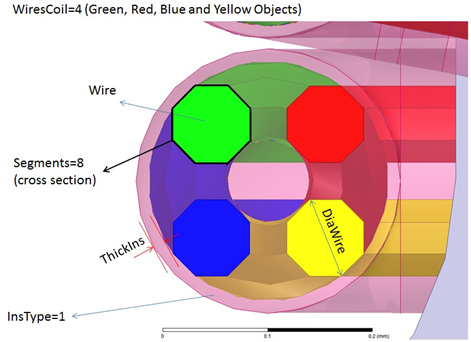

DiaWire

Wire diameter

Segments

Polygon segments for wire cross section: <=2 for true circle

InsType

Insulator type: 1: round insulator; 2: filleted square insulator

ThickIns

Outer minimum thickness of insulator

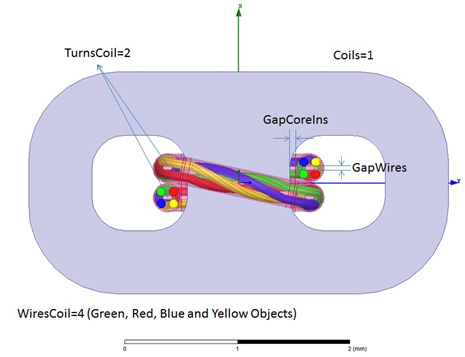

GapWires

The gap between two round wire profiles

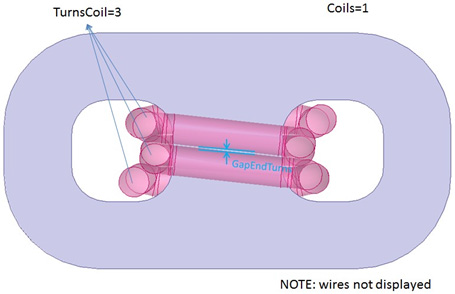

GapEndTurns

The gap between two end turns of round insulator profiles

GapCoreIns

The gap between core and round insulator profiles inside two windows and at two ends

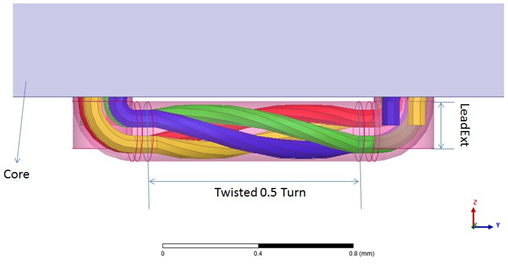

LeadExt

Lead extension from lead terminal to core end terminal

InfoCore

0: All; 1: Core; 2: Insulator; 3-6: Wires of coil#1; 7-10: Wires of coil#2

InfoTerm

0: 3D wire; 1: 2D go-term; 2: 2D re-term (for InfoCore = 3-10 only)
