TransCore UDP
The TransCore UDP is used to create a three-leg transformer core for three-phase transformers.
|
Property |
Description |
|
DiaLeg |
Outer diameter of leg cross-section |
|
DistLeg |
Leg center to center distance |
|
DistYoke |
Yoke center to center distance |
|
Stages |
Number of stages of leg cross-section |
|
ThickCore |
Core thickness, only used for Stages = 1 |
|
WidthYoke |
Yoke width, =0 for same cross-section as leg's |
|
InfoCore |
0: whole core; 1: legs only; 2: yokes only |

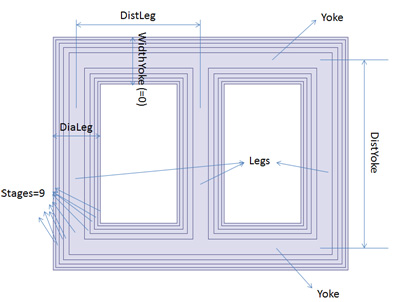

TransCore when Stages is not 1 and WidthYoke is 0

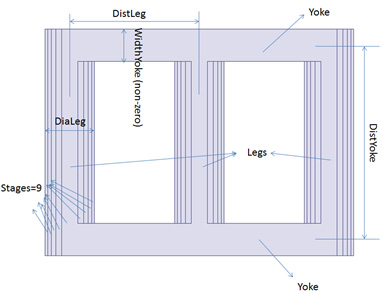

TransCore when Stages is not 1 and WidthYoke is not 0

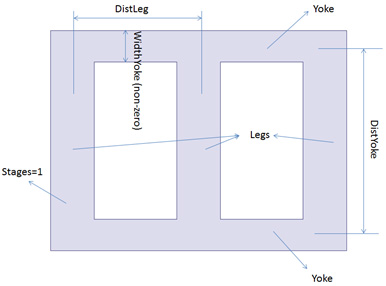

TransCore when Stages is 1 and WidthYoke is not 0

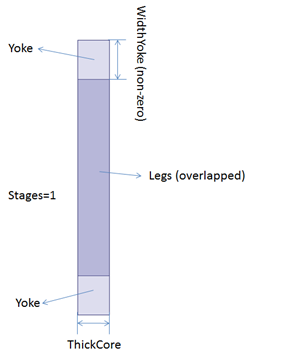

Parameters of TransCore in axial direction (when Stages is 1 and WidthYoke is not 0)
