Square Yoke UDP

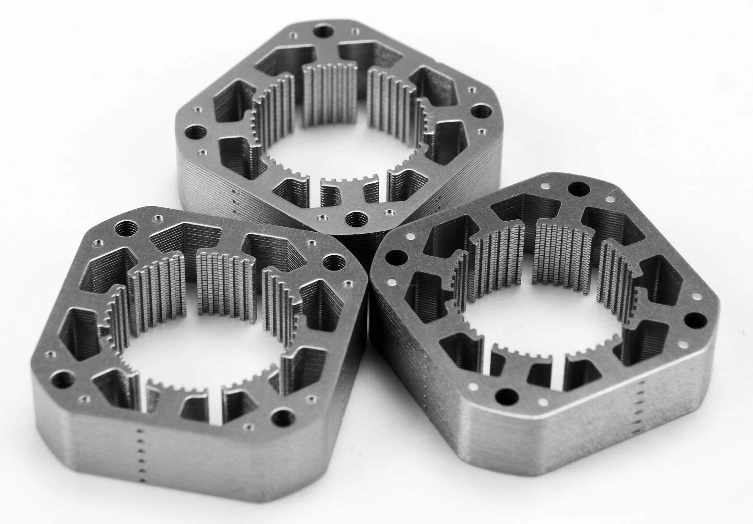

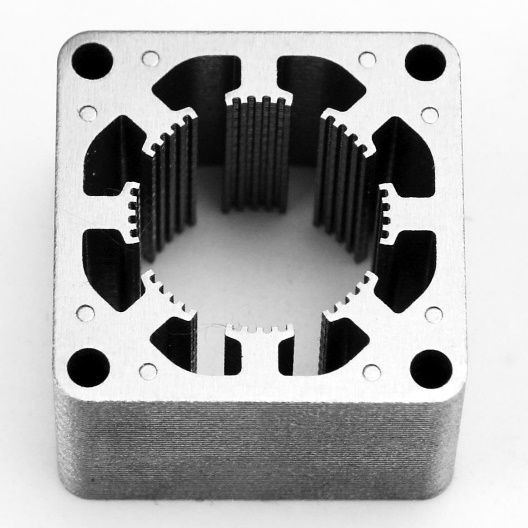

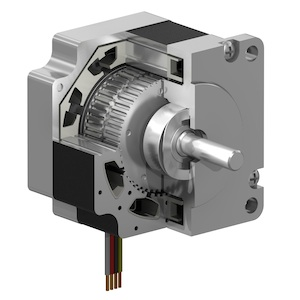

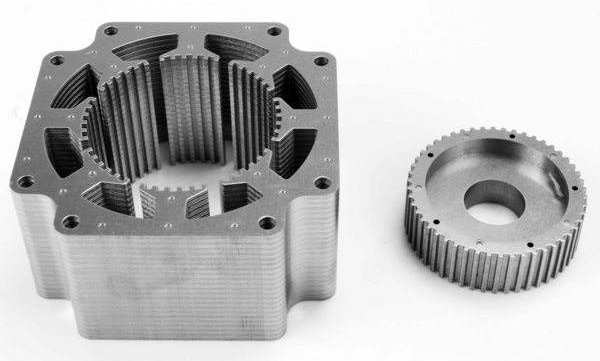

The SquareYoke UDP is used to create outer square yokes, which can be combined with various stator types to be able to directly mount with end caps for small-size machines, as shown in the examples below.
|
|
|
|
Parameter Definitions
| Property | Description |
|---|---|
| WidOuter | Outer width of square profile |
| DiaInner | Inner diameter or minimum width |
| Length | Yoke Length |
| YokeType | 0: Circle; 1: Square Circle; 2: Square Bulged; 3: Square Flat; 4: Square Dented |
| AngCorner | Corner angle related to bore center, not valid for CornerType = 0 |
| BoreType | 1: Circle; 2: Square; 3: Octagon; BoreType is always 1 for CornerType = 0 |
| BoreFillet | Inner bore fillet radius, for square or octagon bore type only |
| R0 | Radius of mounting hole or dented fillet, not valid for CornerType = 0 |
| Rc0 | Radius of mounting hole location or bulged fillet, not valid for CornerType = 0 |
| R1 | Radius of two corner holes, not valid for CornerType = 0 |
| Rc1 | Radius of corner hole location, not valid for CornerType = 0 |
| Ang1 | Angle of two corner-hole centers related to bore center, not valid for CornerType = 0 |
| LenRegion | Region length |
| InfoCore | 0: core; 1: holes; 2: 100: region |
Main parameters described in the table above for the four yoke corner types are shown below, where "Corner Angle" is AngCorner, and "Bore Fillet Radius" is BoreFillet.

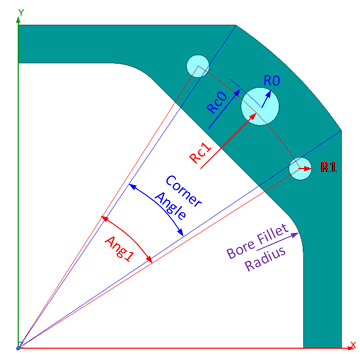

Yoke parameters for YokeType = 1 |

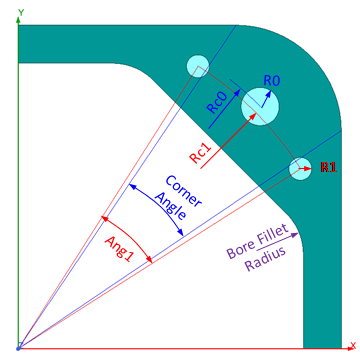

Yoke parameters for YokeType = 2 |

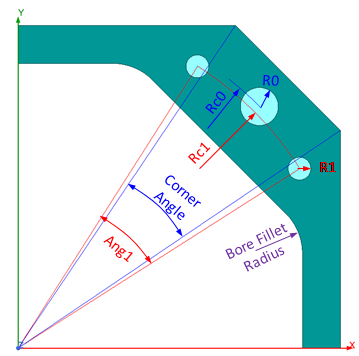

Yoke parameters for YokeType = 3 |

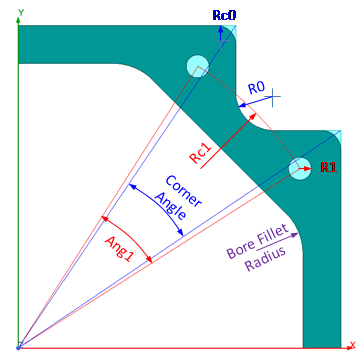

Yoke parameters for YokeType = 4 |
The three bore types are shown below.

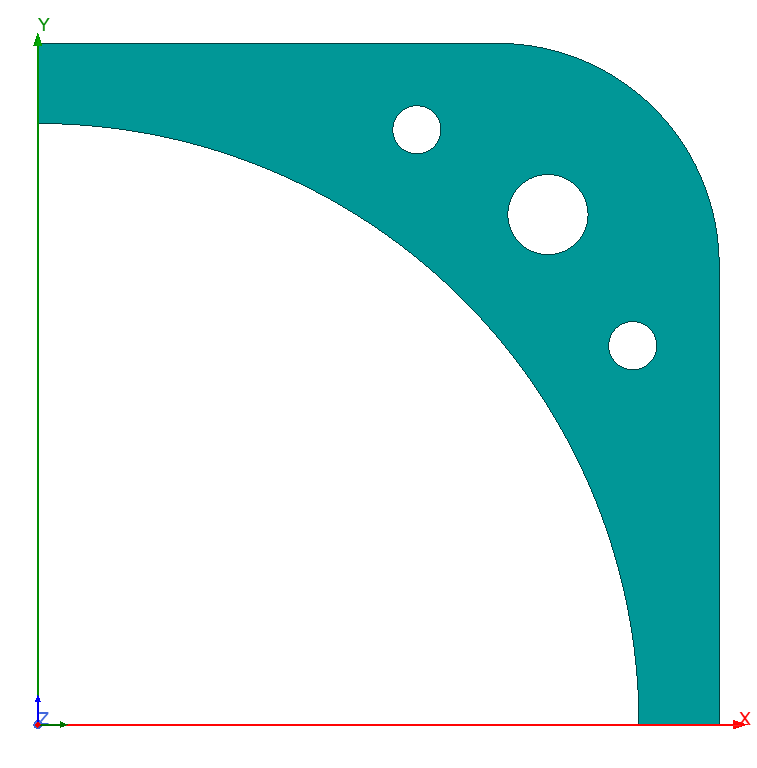

BoreType = 1 |

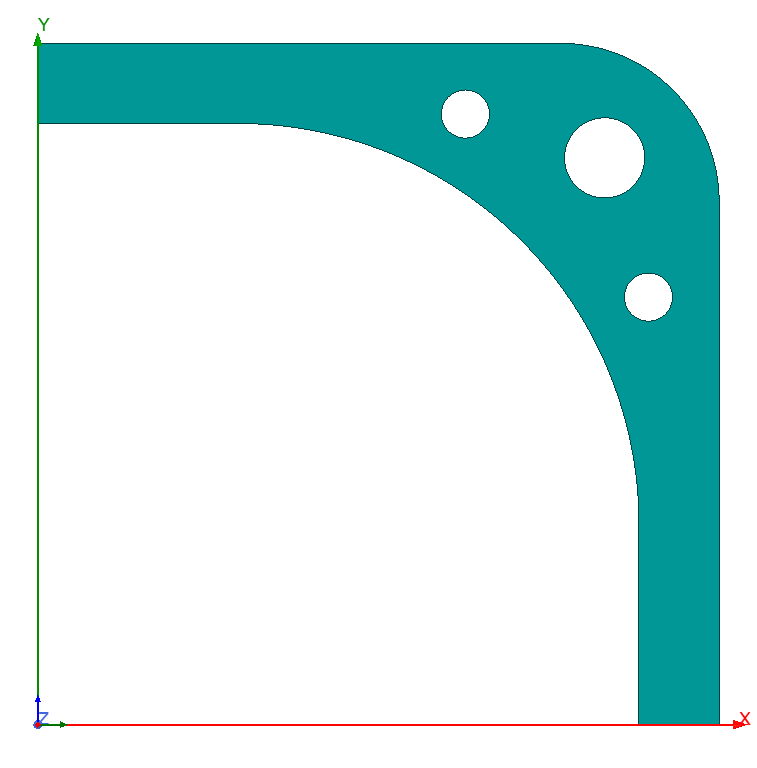

BoreType = 2 |

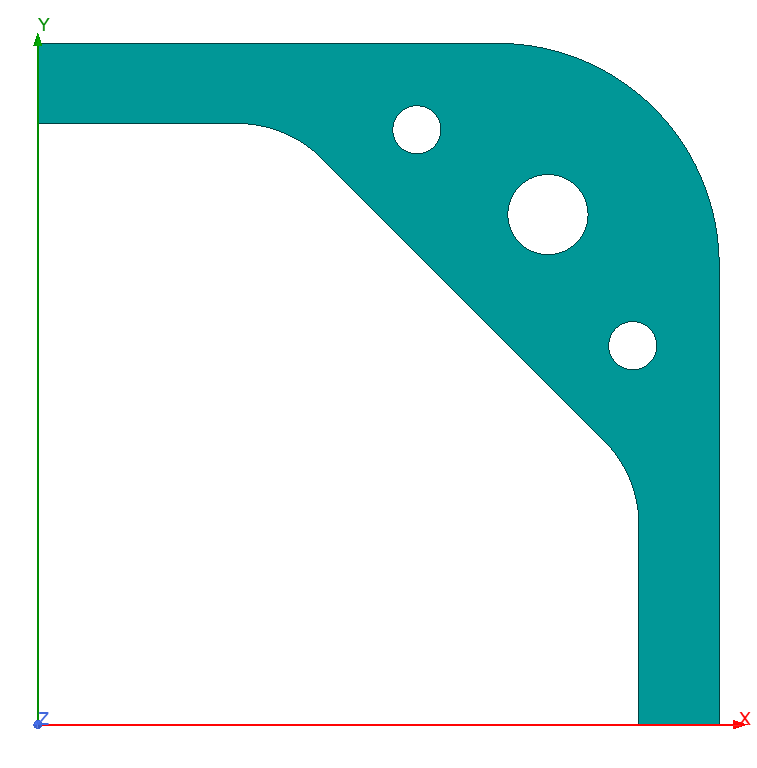

BoreType = 3 |
