ShadedPoleCore2 UDP

The ShadedPoleCore2 UDP is used to create the stator core for shaded-pole induction motors.

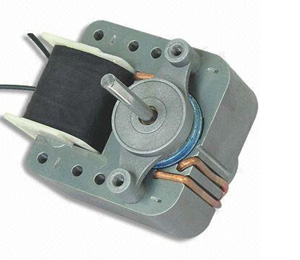

Shaded pole induction motor example 1

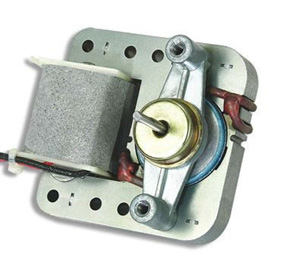

Shaded pole induction motor example 2

Property	Description
DiaGap	Core diameter on gap side, or inner diameter
HighCore	Core height in d-axis direction
WidthCore	Core width in q-axis direction
WidthPole	WidthPole = DiaGap + 2 * (pole bridge thickness)
Length	Core length in the axial direction
WidthYoke1	Width of the winding-core yoke
WidthYoke2	Width of the parallel yokes
Slots	Number of slots per pole (1 or 2)
Hs0	Slot opening height
Bs0	Slot opening width
Bs1	Slot diameter
DiaCond	Diameter of the short-circuit solid conductor
AngleOff	Angle offset in mechanical degrees from the first slot to d-axis
SlotPitch	Slot pitch in mechanical degrees for two slots
Dist1	Outer-slot center-to-center distance when Slots = 2
DiaS2	Additional outer-slot diameter
Dist2	Additional outer-slot distance
InfoEnd	0: Separated end connectors; 1: Jointed end connectors
GapDelta	Maximum gap - minimum gap
AngleBegin	Begin angle of maximum gap in mechanical degrees
AngleEnd	End angle of maximum gap in mechanical degrees
RadFillet	Radius of outer-corner fillet
RadDelta	Step depth in outer-corner fillet
DiaHole	Diameter of holes for shaft bearing covers
SpanHole	Hole span in d-axis direction
LenRegion	Region length
InfoCore	0: Core; 1: All; 2: Coil; 3: Cond1; 4: Cond2; 5: Hole filler; 100: Region
InfoTerm	0: Whole coil; 1: Terminal1; 2: Terminal2

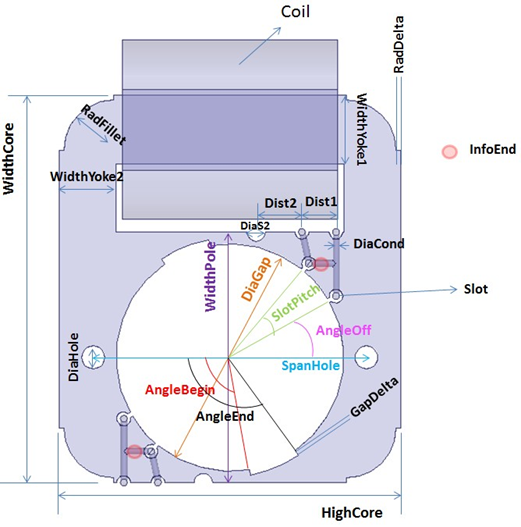

These parameters are demonstrated in the following figure (InfoCore set to 1, Info Term set to 0):

Note:

The number of parameters is large in this UDP, so different colors are used to indicate different parameters in the stator bore (area of the circle of DiaGap). Each parameter is shown with an arc/line and text in the same color.
For parameters such as Length and parameters related to slots, refer to SlotCore UDP parameters.
