SalientPoleCore UDP

The SalientPoleCore UDP is used to create a salient-pole core, a field winding, and a damper for salient-pole synchronous machines. It can also create a coil cross-section used as a terminal for current assignment.

Property	Description
DiaGap	Core diameter on gap side, DiaGap < DiaYoke for outer cores.
DiaYoke	Core diameter on yoke side, DiaYoke < DiaGap for inner cores.
Length	Core length
Skew	Skew angle in core length range
Slots	Number of slots
SlotType	Slot Type: 1 to 4
Hs0	Slot opening height
Hs01	Slot closed bridge height
Hs1	Slot wedge height
Hs2	Slot body height
Bs0	Slot opening width
Bs1	Slot wedge maximum width
Bs2	Slot body bottom width, 0 for parallel teeth.
Rs	Slot body bottom fillet
FilletType	0: a quarter circle; 1: a tangent connection; 2 and 3: arc bottom; 4 and 5: V bottom.
SlotPitch	Slot pitch in mechanical degrees, refer to offset point.
CenterPitch	Center slot pitch in mechanical degrees, refer to offset point.
Poles	Number of poles
PoleType	Pole type: 1 or 2 (not valid for inner cores)
WidthShoe	Pole shoe width
HeightShoe	Pole shoe height at pole center
FilletShoe	Pole shoe tip fillet radius
WidthBody	Pole body width
HeightBody	Pole body height
AirGap2	Second air gap length
Offset	Pole arc offset
Off2_x	The second pole arc offset perpendicular to the pole-center line
Off2_y	The second pole arc offset parallel with the pole-center line
Bp1/Rp1	Bp1: for pole type 1; or Rp1: shoe fillet radius for pole type 2.
Bp2/Rp2	Bp2: for pole type 1; or Rp2: shoe fillet radius for pole type 2.
CoilEndExt	One-side coil end extended length
EndRingType	0: whole press board; 1: pole press board; 2: pole ring; 3: whole ring.
BarEndExt	One-side damper bar end extended Length; for types 2 and 3 only.
RingLength	One-side axial ring length, or conductor press board thickness.
RingHeight	Radial ring height, for types 2 and 3 only.
SegAngle	Deviation angle for slot arches (10~30, <10 for true surface)
LenRegion	Region length
InfoCore	0: core; 1: core & coils; 2: coil; 3: damper; 4: terminal1; 5: terminal2; 6:poles; 7: yoke; 100: region.

These parameters are used in the following figures. In figures with both gray and red objects, the gray objects are used as references.

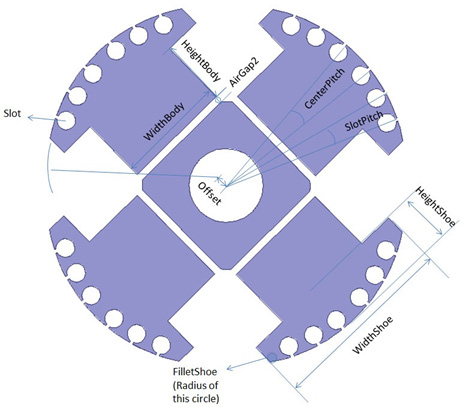

Salient Pole Core (InfoCore set to 0)

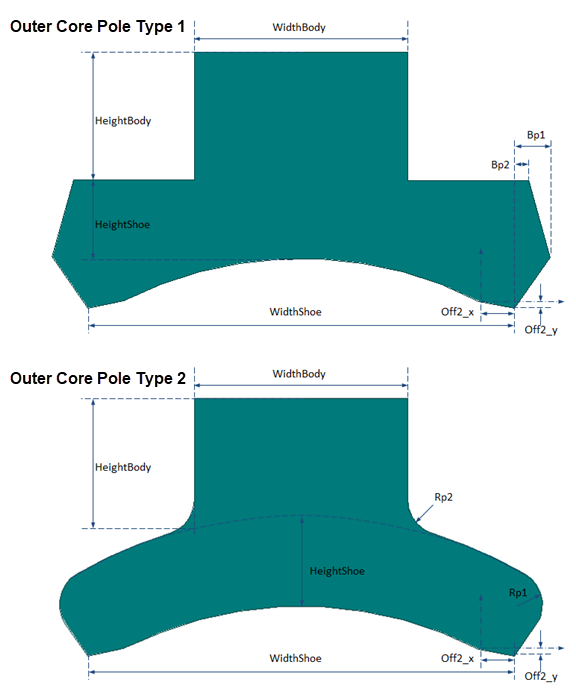

This UDP supports two pole types for outer cores, as shown below:

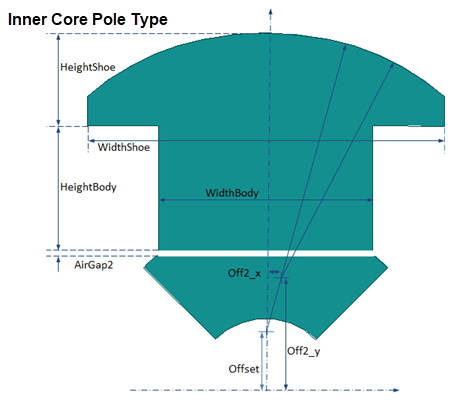

But this UDP supports only one pole type for inner cores:

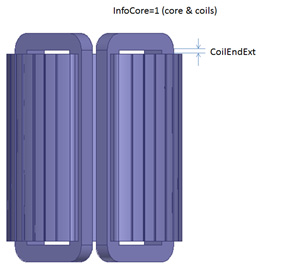

Axial parameters for coils are shown in the following figure:

3D Salient Pole Core and Coils (InfoCore set to 1)

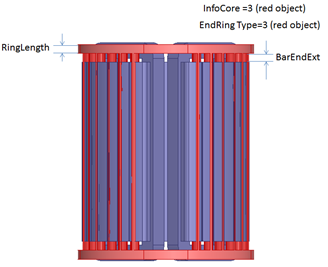

Axial parameters for dampers are shown in this next figure:

SalientPoleCore Damper (InfoCore set to 3)
