SRMCore UDP
The SRMCore UDP is used to create the stator core, a stator winding, and the rotor core for switched reluctance motors. It can also create a coil terminal for current assignment.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, DiaGap<DiaYoke for outer cores |
|
DiaYoke |
Core diameter on yoke side, DiaYoke<DiaGap for inner cores |
|
Length |
Core length |
|
Poles |
Number of poles |
|
ThkYoke |
Yoke thickness |
|
Embrace |
Pole embrace (the ratio of pole arc to pole pitch) |
|
Delta |
One side pole-edge angle, 0 for parallel pole edges |
|
RFillet |
RFillet > 0 for SRM cores with fillet corner; RFillet < 0, its absolute value defines the height of the V-shape slot bottom. |
|
EndExt |
Coil one-side end extended length |
|
LenRegion |
Region length |
|
InfoCore |
0: core; 1: core & coils; 2: coil; 3: terminal1; 4: terminal2; 100: region |
These parameters are used in the following figures.

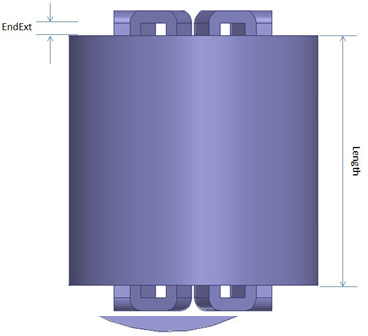

Core & coils of SRM Core (InfoCore set to 1) shows the parameter EndExt, which is a parameter of a coil. The InfoCore value of EndExt is 1 (core & coils) to better describe the parameter.

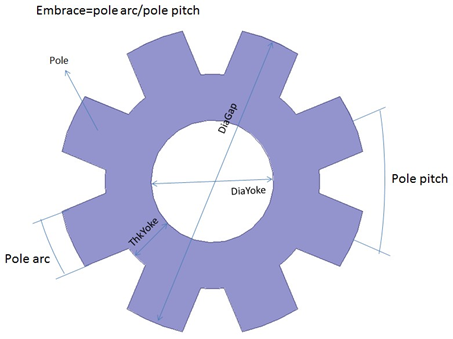

Inner core of SRM Core (InfoCore set to 0)

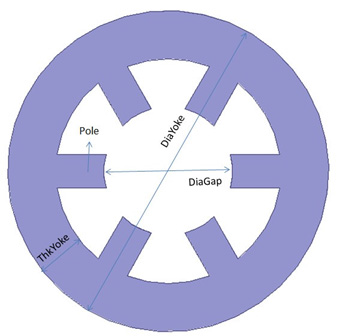

Outer core of SRM Core (InfoCore set to 0)
