Pulse Voltage Source

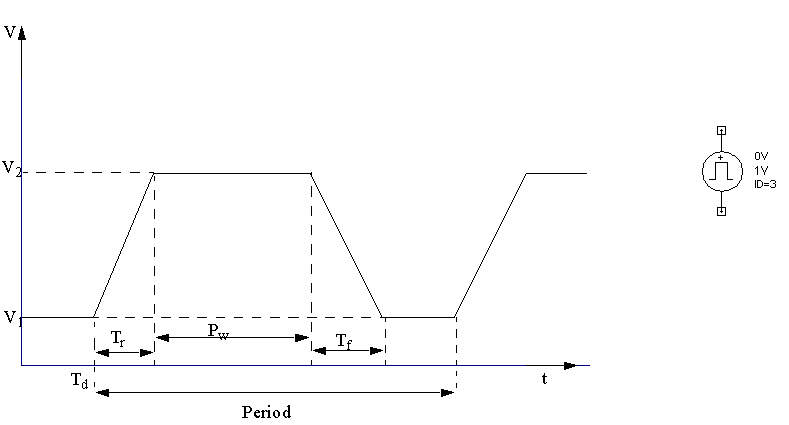

This is an independent voltage source with a trapezoidal waveform of the voltage as a function of time. The "+" and "-" symbols are used to mark the polarity of the source.

The parameters of a voltage pulse source are the following:

• Initial voltage in Volts, V1
• Peak voltage in Volts, V2
• Initial delay time, Td:
• In seconds if type is TIME
• In degrees if type is POSITION and type of motion is rotational
• In geometry units if type is POSITION and type of motion is translational
• In rpm if type is SPEED and type of motion is rotational
• In geometry units per second if type is SPEED and type of motion is translational
• Rise time, Tr:
• In seconds if type is TIME
• In degrees if type is POSITION and type of motion is rotational
• In geometry units if type is POSITION and type of motion is translational
• In rpm if type is SPEED and type of motion is rotational
• In geometry units per second if type is SPEED and type of motion is translational
• Fall time Tf:
• In seconds if type is TIME
• In degrees if type is POSITION and type of motion is rotational
• In geometry units if type is POSITION and type of motion is translational
• In rpm if type is SPEED and type of motion is rotational
• In geometry units per second if type is SPEED and type of motion is translational
• Pulse width, Pw:
• In seconds if type is TIME
• In degrees if type is POSITION and type of motion is rotational
• In geometry units if type is POSITION and type of motion is translational
• In rpm if type is SPEED and type of motion is rotational
• In geometry units per second if type is SPEED and type of motion is translational
• Pulse period, Period:
• In seconds if type is TIME
• In degrees if type is POSITION and type of motion is rotational
• In geometry units if type is POSITION and type of motion is translational
• In rpm if type is SPEED and type of motion is rotational
• In geometry units per second if type is SPEED and type of motion is translational
