PolygonHelix UDP
The shape of the cross-section of a PolygonHelix is a polygon.
|
Property |
Description |
|
PolygonSegments |
Number of cross-section polygon segments, 0 for circle |
|
PolygonRadius |
Outer radius of cross-section polygon |
|
StartHelixRadius |
Start radius from polygon center to helix center |
|
RadiusChange |
Radius change per turn |
|
Pitch |
Helix pitch |
|
Turns |
Number of turns |
|
SegmentsPerTurn |
Number of segments per turn, 0 for true surface |
|
RightHanded |
Helix direction, non-zero for right handed |

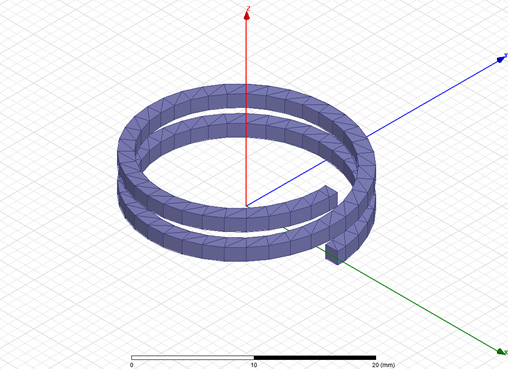

Overview of PolygonHelix UDP is an overview of the PolygonHelix UDP. “Polygon” means the cross-section of the helix is a polygon, which by default is a square (PolygonSegments set to 4).
Polygon helices in Parameters of PolygonHelix UDP on x-y plane. and Parameters of PolygonHelix UDP on axial direction. have the default settings of this UDP, whereas each of the polygon helices in Different RadiusChange value (non-zero); the value in Parameters of PolygonHelix UDP on x-y plane. is 0. to Different Turns value (3); the value in Parameters of PolygonHelix UDP on axial direction. is 2. has only one parameter value that is different from the defaults shown in Parameters of PolygonHelix UDP on x-y plane. and Parameters of PolygonHelix UDP on axial direction..

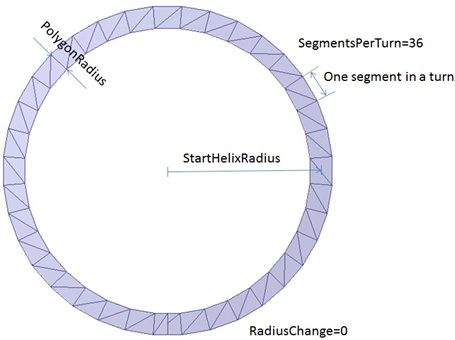

Parameters of PolygonHelix UDP on x-y plane.

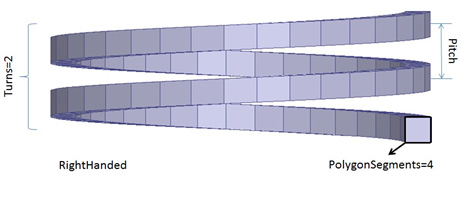

Parameters of PolygonHelix UDP on axial direction.

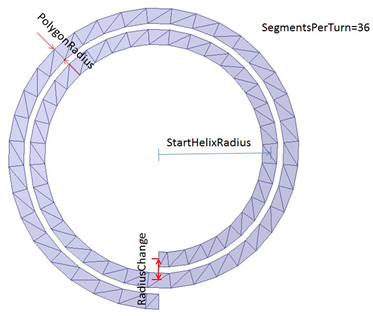

Different RadiusChange value (non-zero); the value in Parameters of PolygonHelix UDP on x-y plane. is 0.

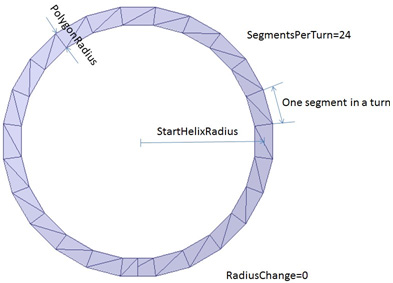

Different SegmentsPerTurn value (24); the value in Parameters of PolygonHelix UDP on x-y plane. is 36.

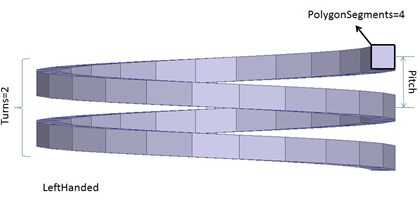

Left-handed (RightHanded set to 0) helix; Parameters of PolygonHelix UDP on axial direction. shows a right-handed helix.

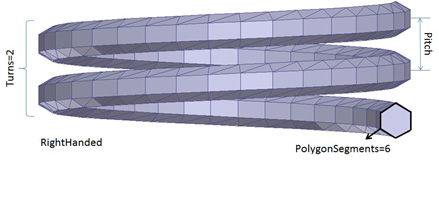

Different PolygonSegments value (6); the value in Parameters of PolygonHelix UDP on axial direction. is 4.

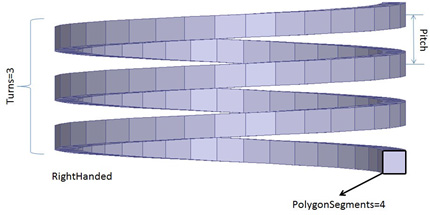

Different Turns value (3); the value in Parameters of PolygonHelix UDP on axial direction. is 2.
