Odd Symmetry (Flux Normal) for an Electric Field Solution

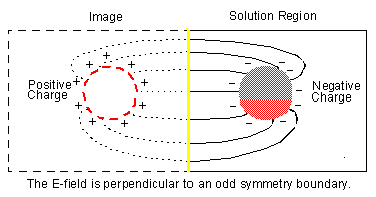

Use an odd symmetry boundary to define a plane of symmetry where the signs (positive or negative) of all charges and voltages on one side of the plane are the opposite of those on the other side. Electric flux is normal to the boundary. To define an odd symmetry boundary, the simulator sets the selected edge to a voltage boundary with a potential of zero volts.
