NonSalientPoleCore UDP
The NonSalientPoleCore UDP is used to create non-salient rotor cores for non-salient rotor synchronous machines. This core type may include surface tangential vent ducts, axial vent ducts, as well as a damper.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, DiaGap < DiaYoke for outer cores. |
|
DiaYoke |
Core diameter on yoke side, DiaYoke < DiaGap for inner cores. |
|
Length |
Core length. |
|
Skew |
Skew angle in core length range. |
|
IndexingSlots |
Number of indexing slots for slot pitch calculation. |
|
ActualSlots |
Number of actual slots: ActualSlots <= IndexingSlots. |
|
SlotType |
Slot Type: 1 to 7. |
|
Hs0 |
Slot opening height. |
|
Hs1 |
Slot wedge height. |
|
Hs2 |
Slot body height. |
|
Bs0 |
Slot opening width. |
|
Bs1 |
Slot wedge maximum width. |
|
Bs2 |
Slot body bottom width, 0 for parallel teeth. |
|
Rs |
Slot body bottom fillet. |
|
FilletType |
0: a quarter circle; 1: a tangent connection; 2&3: arc bottom. |
|
Poles |
Number of poles. |
|
TangentDucts |
Number of surface tangential vent ducts. |
|
TDuctWidth |
Axial width of surface tangential vent ducts (or damper rings). |
|
TDuctDepth |
Radial depth of surface tangential vent ducts (or damper rings). |
|
TDuctPitch |
Pitch of surface tangential vent ducts (or damper bar extension). |
|
AxialDucts |
Number of axial vent ducts per pole. |
|
ADuctWidth |
Width of axial vent ducts in main tooth. |
|
ADuctDepth |
Depth of axial vent ducts in main tooth. |
|
SegAngle |
Deviation angle for slot arches (10~30, <10 for true surface). |
|
LenRegion |
Region length. |
|
InfoCore |
0: Core; 100: region. |

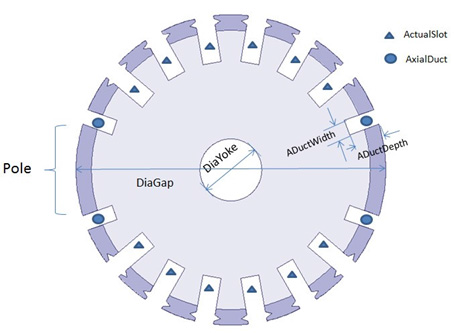

These parameters are demonstrated with an inner Non-Salient SlotCore example. The first figure shows the parameters on a cross-section of NonSalientPoleCore:

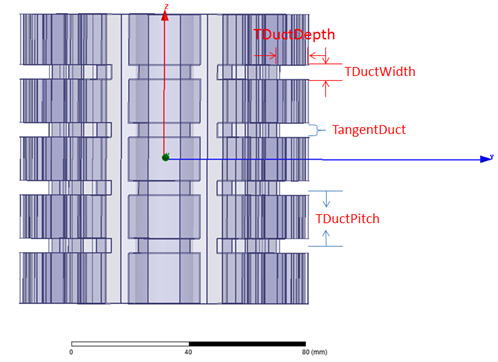

The next figure shows the parameters on the axial direction of NonSalientPoleCore:
