Named Probes and Properties in User-Defined Outputs
UDOs allow processing data across traces, solutions and report types. A UDO specifies the named probes and properties for which user selects/enters the values at the time of creation of user defined solution. Probes are very similar to traces except that the user selects the values of only intrinsic variables for probes. The values of design/project variables are selected when a trace is created based upon the user defined solution in reporter.

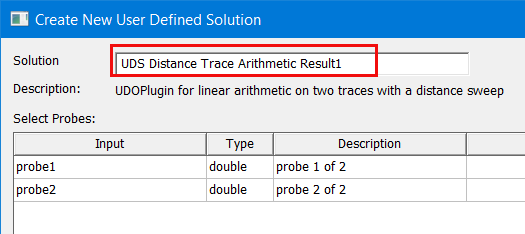

For example, you could create a user-defined solution called UDS Distance Trace Arithmetic Result1:

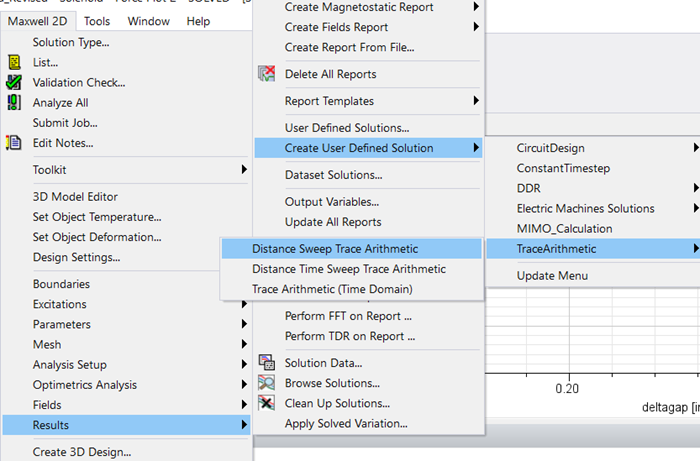

You can then access this solution in the Create User Defined Solution menu:
